REST API Authentication In Atlassian using Authorization Grant from OAuth Provider

Welcome to the exciting realm of REST API Authentication in Atlassian using Authorization Grant from OAuth Provider! OAuth 2.0 - Your Key to Secure Access.

OAuth 2.0 is the go-to method for authenticating access to APIs, providing authorization without compromising your email address or password. With OAuth 2.0, you can seamlessly access Jira/Confluence content via APIs without sharing sensitive credentials.

This guide will walk you through the steps to configure authentication through Authorization Grant from OAuth Provider.

Download And Installation

  • Log into your Atlassian instance as an admin.
  • Navigate to the settings menu and click Manage Apps.
  • Click Find new apps or Find new add-ons from the left-hand side of the page.
  • Locate API Token/OAuth Authentication app.
  • Click Try free to begin a new trial or buy now to purchase a license.
  • Enter your information and click Generate License when redirected to MyAtlassian.
  • Click Apply License.

Authentication Methods

wordpress single sign-on sso discord role mapping

OAuth 2.0 Authentication
wordpress single sign-on sso login form add-on integration

Api Key Authentication
wordpress single sign-on sso login form add-on integration

JWT Authentication
wordpress single sign-on sso media restriction add-on integration

Third Party Provider Authentication

Step 1: Configure Authorization Grant from OAuth Provider

    1.1 : Configure Authorization Grant for Authenticating the tokens

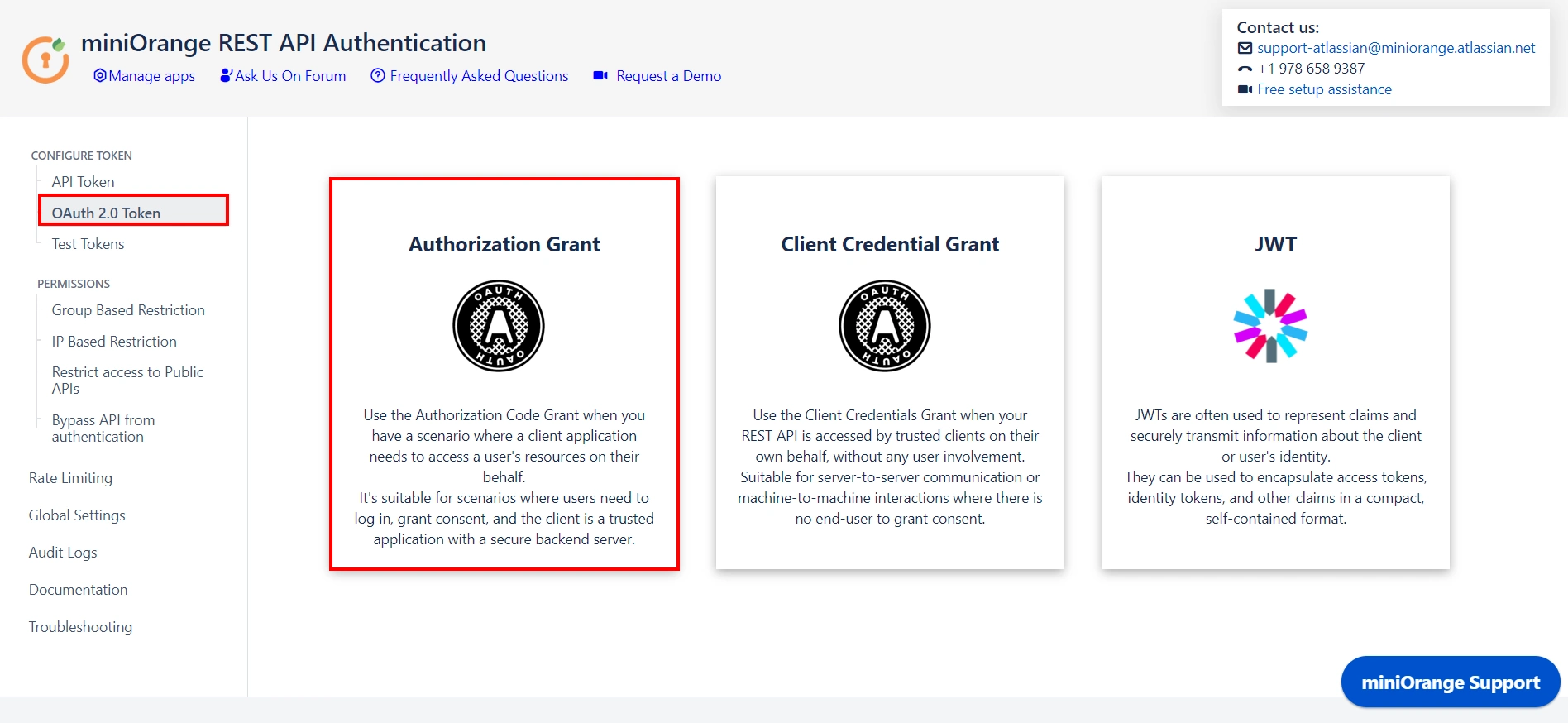

    • Head over to the OAuth 2.0 Token Tab and select Authorization Grant.
      • Rest API, select authorization grant
      NOTE: If you've configured another grant previously, a pop-up will ask if you want to switch. If you've set up an IDP and want to change it, just click on "Change OAuth Provider." .
    • It will display a list of the following IDPs through which you can select.
      • Rest API, OAuth providers list

      Can't find yours or using a custom IDP? No worries! we got you covered.

    miniorange img  Follow the steps below to configure your IDP using the Custom IDP option

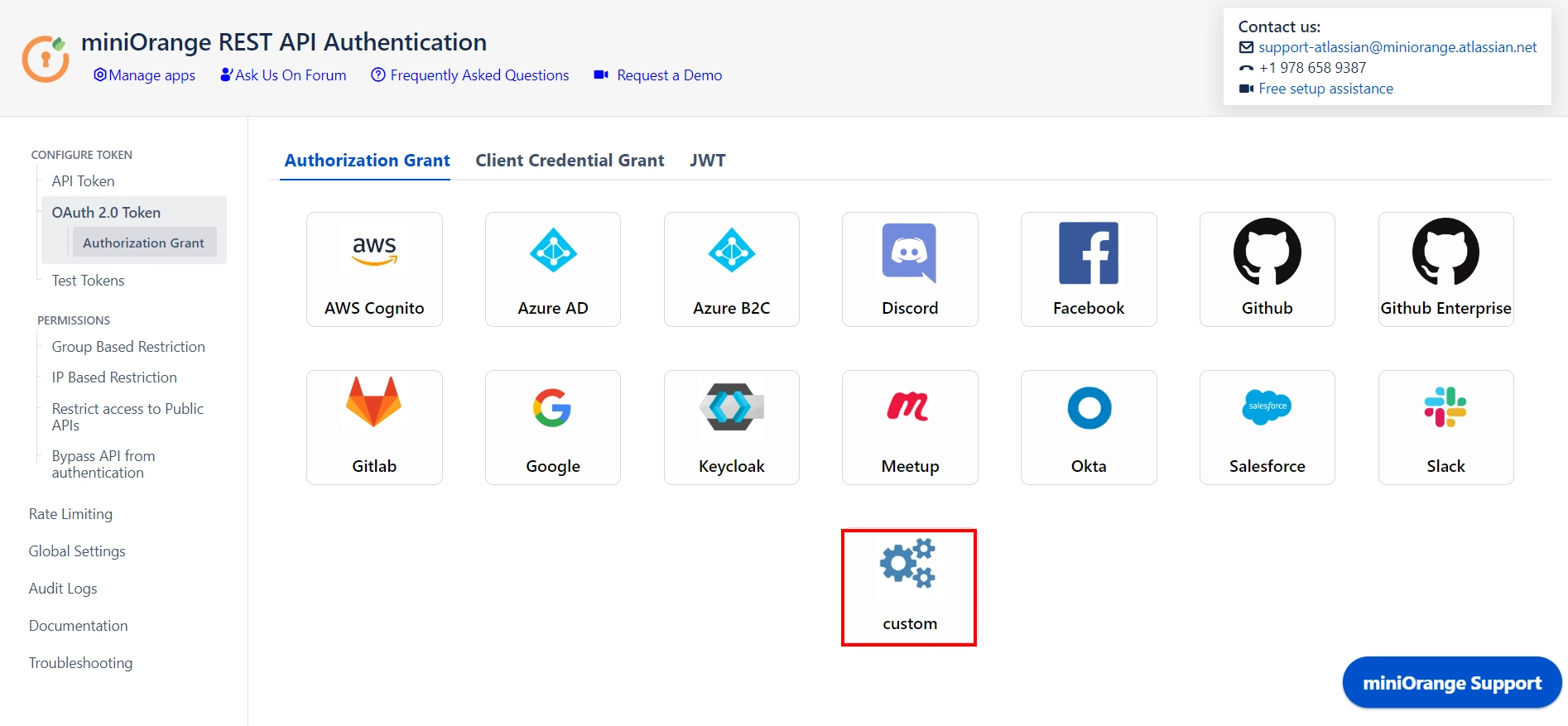

    • Select the Custom Provider.
      • Rest API, Select custom IDP

    1.2 : Configuring the provider

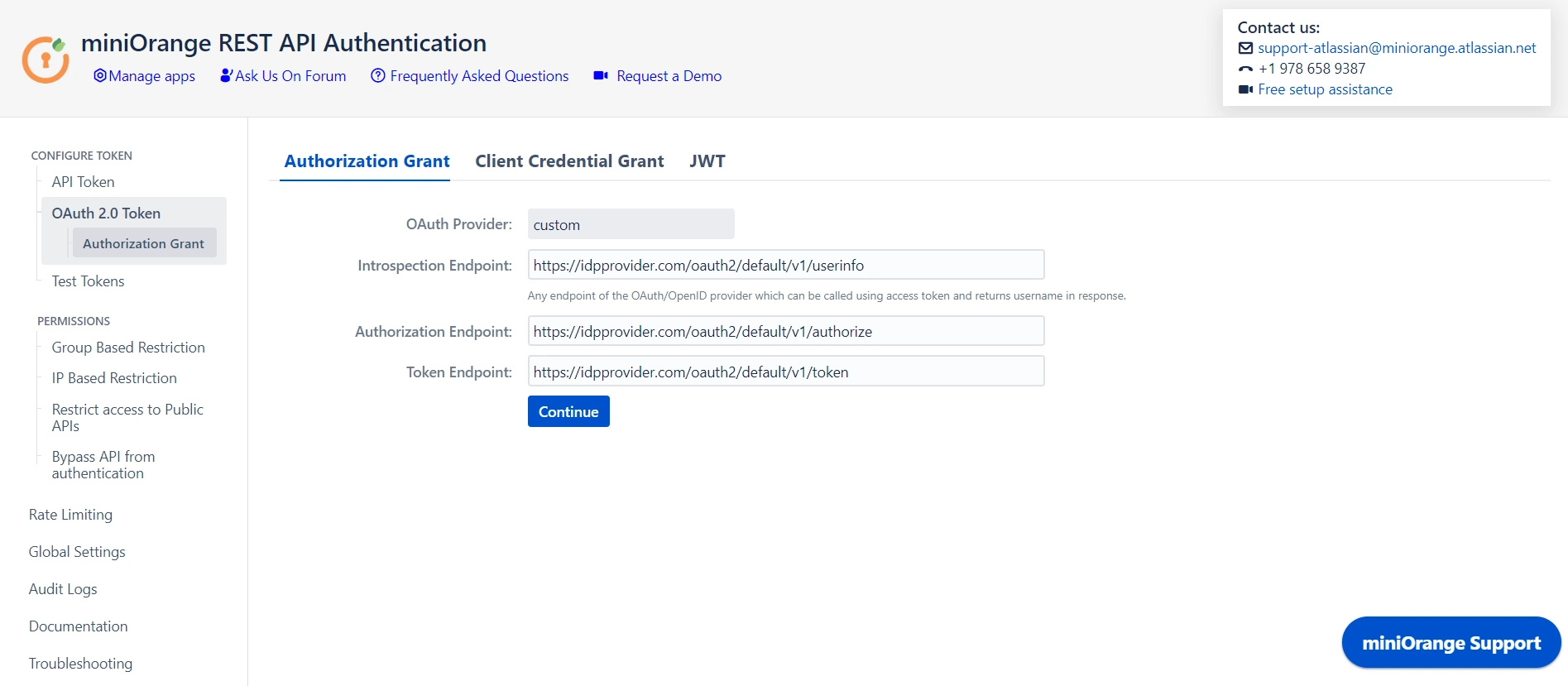

    • Enter the following details.
      • User info endpoint
      • Authorization endpoint
      • Token endpoint
      Authorization Grants endpoint, REST API
    • Copy the redirect URI and paste it into the callback/redirect URIs of the OAuth provider.
    • Enter the details such as Client ID, Client secret, scope and State.
      • Make sure that you have entered all the required information in the previous form as the details such as client ID and client secret will be used to retrieve the OAuth token.
    • To configure the username attribute, click on the Get username/email attribute button.
    • Click on the Fetch token button.

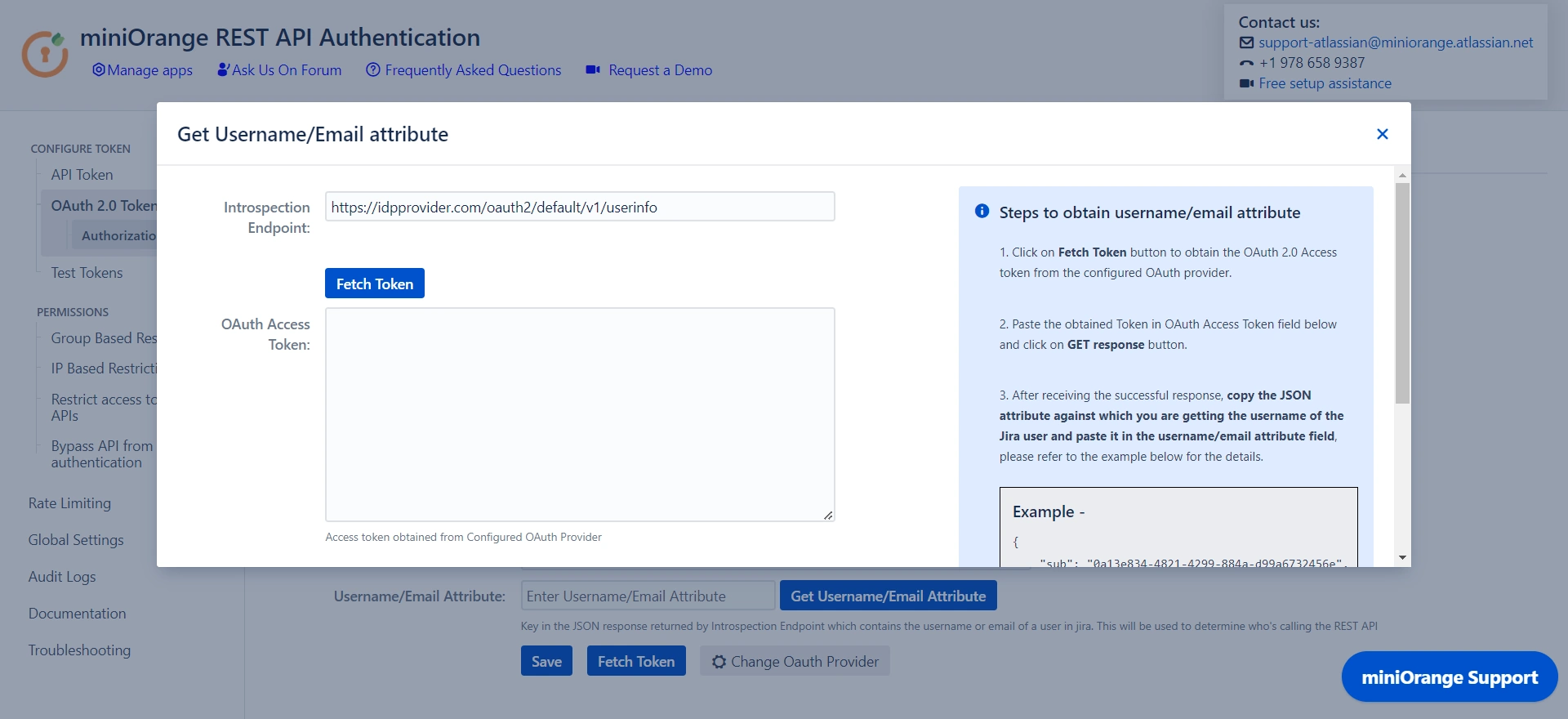

      • Fetch Token, REST API
    • You'll be redirected to your OAuth provider. Log in, and voila! You'll receive the access token.
      • OAuth Access token, REST API
      Feeling a bit stuck? Reach out to atlassiansupport@xecurify.com for assistance.
    • Paste the OAuth 2.0 Access token obtained from the OAuth provider, and click on "Get response."

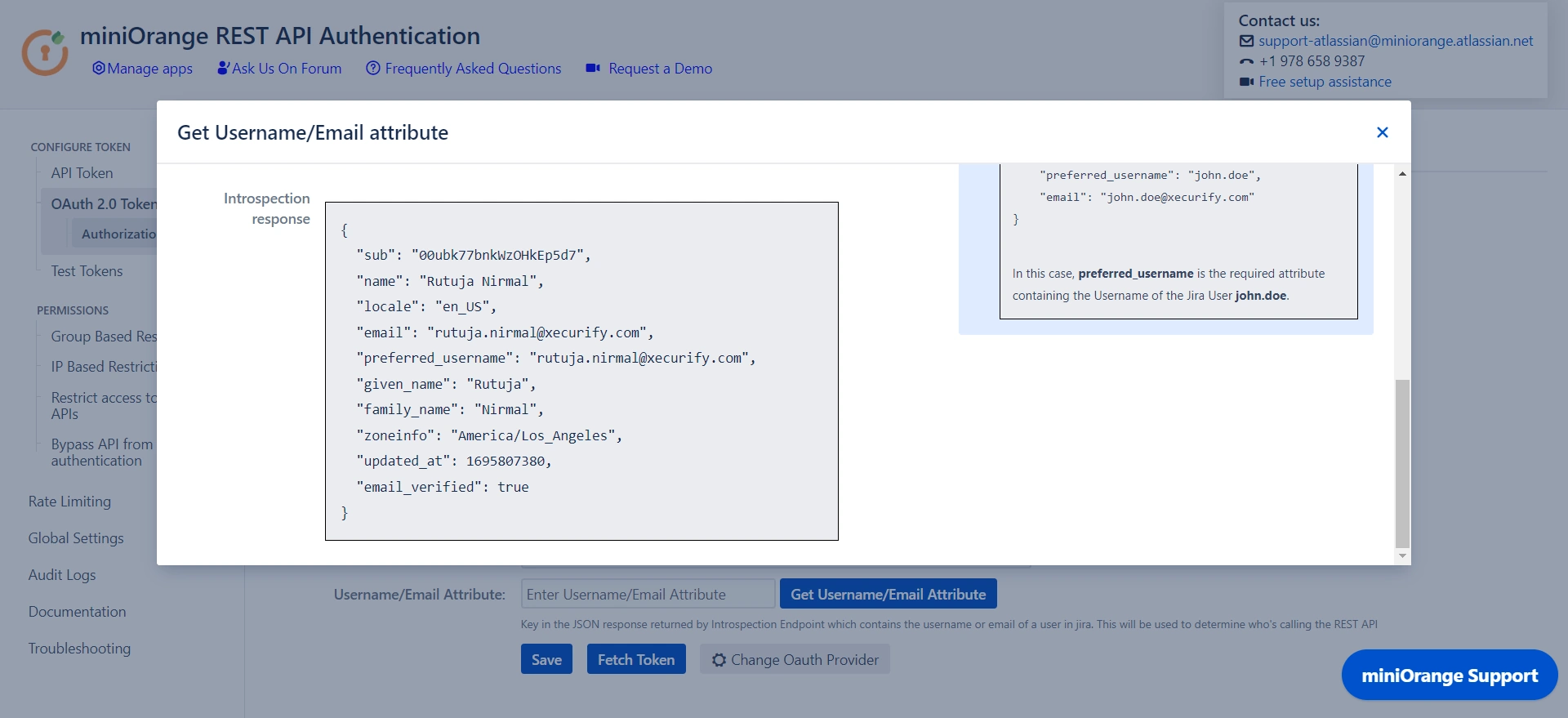

    • In the received response, copy the JSON attribute containing the username/email of the user in the local directory. Paste it into the Username/Email Attribute input field, and click on Save.
      • introspection response, REST API
    • You can fetch the token using the "Fetch Token" button or grab it through POSTMAN using the provided curl. Copy the token.

Step 2: Test Configurations

  • Select the appropriate token type.
  • Paste the token and click on Test Token.
    • SAML Single Sign On(SSO) using AWS Identity Provider, Add User

    🎊 Test Successful! You can proceed further.

    Need Help?

    If you encounter any difficulties configuring add-ons, please contact us at atlassiansupport@xecurify.com or raise a support ticket here.

Step 3: Adding Group and IP-Based Restriction

    Group Based Restrictions

    • You can Enable Allow API access and select groups who can access the APIs. Users who will not be part of selected groups cannot access the APIs.
    • You can Enable Read-only Groups and allow selected groups to only access READ APIs. Users of selected groups will not be able to perform WRITE operations.
    • You can Enable Allow Token Generation and select groups that can generate tokens. Users who will not be part of selected groups cannot generate tokens.
      • SAML Single Sign On(SSO) using AWS Identity Provider, Add User

    IP Based Restrictions

    • You can enable Restrict Access to API by IP Address to allow API access from a specified network.
    • You can add the specific IP address or IP range in CIDR notations; this will block all calls that do not belong to the configured values.
    • You can enable Reverse Proxy Compatibility if your instance is running behind a reverse proxy and specify the header name to retrieve the client’s real IP address.
      • SAML Single Sign On(SSO) using AWS Identity Provider, Add User

Step 4: Public API Access

    Restrict Access to Public APIs

    • Public APIs do not require authentication and can be accessed anonymously. However, you can configure the API in Restrict Access to Public APIs and force authentication.
      • SAML Single Sign On(SSO) using AWS Identity Provider, Add User

    Bypass API from Authentication

    • You can disable authentication through the plugin for specified APIs by adding them under Bypass API Authentication. However, default authentication might still be applicable.
      • SAML Single Sign On(SSO) using AWS Identity Provider, Add User

Step 5: Global Settings

  • The Enable REST API Authentication toggle ensures API authentication through the plugin. If disabled, the plugin will not be involved in API authentication.
  • The Disable Basic Authentication toggle allows you to enforce authentication through the plugin. Basic authentication using username and password will be restricted.
  • You can use the Plugin's OAuth 2.0 Tokens toggle to disable OAuth 2.0 tokens if not in use.
  • The Allow PAT Tokens will allow users to use PAT tokens generated by Jira/Confluence to access the API. To restrict the use of PAT tokens and enforce authentication through the plugin you can disable the toggle.
  • The Allow users to create Tokens toggle will allow all other users to generate tokens. If disabled, only admins will be able to generate tokens. However, if you have enabled Allow groups to generate tokens from group-based restrictions, you need to keep the toggle on.
    • SAML Single Sign On(SSO) using AWS Identity Provider, Add User

Step 6: Rate Limiting

  • Enable rate limiting to restrict the number of requests made by a token within the specified time frame.
  • Then select the number of requests to be allowed and the time frame.
  • This will enforce rate limiting on the API tokens generated through the plugin.
    • SAML Single Sign On(SSO) using AWS Identity Provider, Add User

Step 7: Audit Logs

  • You can Enable Audit Logs to log the activity with REST APIs. This will help you monitor the REST API access.
  • You can also update the Scheduler settings that automatically delete logs after a specific number of days or entries.
    • SAML Single Sign On(SSO) using AWS Identity Provider, Add User
