Ionic Single Sign-On SSO

Ionic JWT Single Sign-On (SSO) solution by miniOrange provides secure Single Sign-On access into Ionic application using a single set of login credentials. This is done using JSON Web Token (JWT) tokens and it can be easily integrated with Ionic built in any framework or language. You can enable social login for your users to get secure access to applications using any of their existing social providers such as Facebook, Twitter, Google, or LinkedIn.

With miniOrange Ionic SSO, you get:

Seamless user login experience.
Endless customizations to your login forms and pages.
Simplified customer or user on-boarding.

Connect with External Source of Users

miniOrange provides user authentication from various external sources, which can be Directories (like ADFS, Microsoft Active Directory, Microsoft Entra ID, OpenLDAP, Google, AWS Cognito etc), Identity Providers (like Shibboleth, Ping, Okta, OneLogin, KeyCloak), Databases (like MySQL, Maria DB, PostgreSQL) and many more.

Follow the step-by-step guide given below for Ionic Single Sign-On (SSO):

1. Configure Ionic in miniOrange

Go to Apps >> Add Application from the side menu.

Ionic SSO: Configure and Add JWT application

Click on the JWT under Choose Application Type.

In the next step, search for Ionic application from the list. If your application is not found, search for External / JWT App and you can set up your Application.

Configure JWT application: Search Ionic JWT application

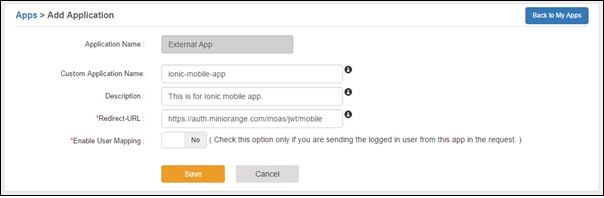

You can configure the following details in the application:

Custom App Name	Enter the Application Name of your choice, and add a description if required.
Redirect-URL	Enter the Redirect-URL (i.e. the endpoint where you want to send/post your JWT token). You can add multiple redirect URLs by separating them with a ‘;’. E.g. abc.com;xyz.com
Primary Identity Provider (optional)	Select your Identity Source from the dropdown. You can select miniOrange here as default IDP.

Click on Save to complete the configuration.

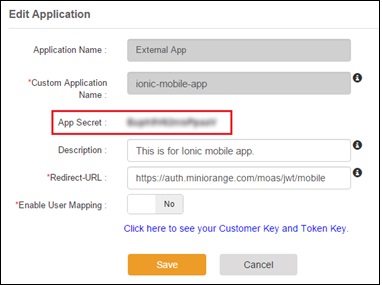

Click on Edit in the select menu against your app.

You can get further details about your recently added JWT application:

Client ID	If your application provides its own client ID, you can configure it by clicking on the Customize button.
App Secret	You can find App Secret by clicking on the copy icon. This is used in the HS265 Signature algorithm for generating the signature.
Signature Algorithm	Select your signature algorithm from the dropdown.
Primary Identity Provider	Select the default Identity Provider from the dropdown for the application. If not selected, users will see the default login screen and can choose their own IDP. [Choose miniOrange in this case.]
Redirect URL	Given below is your app URL where you will receive your token. RSA 256 : <your_app-login-url> (Here token will be added by the system) HS256 : <app-login-url/?id_token=>

Scroll down to Endpoints >> Single Sign-On URL. Save this URL as you will need this in the following configuration.

Ionic SSO: React Single Sign-On SSO endpoints url

click on Save to save the configuration.

2. Adding Script on Ionic's End

To enable SSO on Ionic's end, all you need to do is add a Single Sign-On URL and Customized Script to retrieve the required attributes from the JWT token.
Please click here to contact us for the script which is to be added.

3. Test SSO Configuration

Test SSO login to your Ionic account with miniOrange IdP:

Using IDP Initiated Login

On the Dashboard, click on Ionic application which you have added, to verify SSO configuration.

Ionic Single Sign-On (SSO) verify configuration

Not able to configure or test SSO?

Contact us or email us at idpsupport@xecurify.com and we'll help you setting it up in no time.

4. Login Using Social Provider (Optional)

miniOrange provides user authentication from various external sources, which can be Directories (like ADFS, Microsoft Active Directory, Microsoft Entra ID, OpenLDAP, Google, AWS Cognito etc), Identity Providers (like Okta, Shibboleth, Ping, OneLogin, KeyCloak), Databases (like MySQL, Maria DB, PostgreSQL) and many more. You can configure your existing directory/user store or add users in miniOrange.

Setup Google
Setup LinkedIn
Setup Facebook
Setup Apple

4.1. Configure Google Apps as OAuth 2.0 Provider in miniOrange.

Go to miniOrange Admin Console.
From the left navigation bar select Identity Providers >> Add Identity Provider.

Select OAuth2.0

Ionic SSO: Add OAuth2.0 Identity Provider

Enter the following values:

IdP Name	Custom Provider
IdP Display Name	Choose appropriate Name
OAuth Authorize Endpoint	https://{your-base-url}/as/authorization.oauth2
OAuth Access Token Endpoint	https://{your-base-url}/as/authorization.oauth2
OAuth Get User Info Endpoint (optional)	https://{your-base-url}/idp/userinfo.oauth2
Client ID	From step 4.2
Client secret	From step 4.2
Scope	email

4.2. Configuring miniOrange as Service Provider (SP) in Google Apps

Go to https://console.developers.google.com/ and sign up/login.
Click on Select Project to create a new Google Apps Project,you will see a popup with the list of all your projects.

You can click on the New project button to create new project.

Enter your Project name under the Project Name field and click on Create.

Go to Navigation Menu >> APIs >> Services >> Credentials.

Click on Create Credentials button and then select OAuth Client ID from the options provided.

In case you are facing some warning saying that in order to create an OAuth Client ID, you must set a product name on consent screen (as shown in below image). Click on the Configure consent screen button.

Enter the required details such as App Name, User Support Email. and click on Save and Continue button.

Now for configuring scopes, click on Add or Remove the Scopes button.

Now, Select the Scopes to allow your project to access specific types of private user data from their Google Account and click on Save and Continue button.

Go to the Credentials tab and click on Create Credentials button. Select Web Application from dropdown list to create new application.

To get the Redirect URL:

Go to miniOrange Admin Console.
From the left navigation bar select Identity Provider.

Copy the Callback URL as Redirect URL required for next step.

Enter the name you want for your Client ID under the name field and enter the Redirect/Callback URI and click on Create button.

You will see a popup with the Client ID and Client Secret Copy your Client ID and Client Secret.

IonicSSO: Google client id client secret

You have successfully completed your Google App OAuth Server side configurations.

4.1. Configure LinkedIn as OAuth 2.0 Provider in miniOrange.

Go to miniOrange Admin Console.
From the left navigation bar select Identity Providers >> Add Identity Provider.

Select OAuth2.0

Enter the following values:

IdP Name	Custom Provider
IdP Display Name	Choose appropriate Name
OAuth Authorize Endpoint	https://www.linkedin.com/oauth/v2/authorization
OAuth Access Token Endpoint	https://www.linkedin.com/oauth/v2/accessToken
OAuth Get User Info Endpoint (optional)	https://api.linkedin.com/v2/me
Client ID	From step 4.2
Client secret	From step 4.2
Scope	r_emailaddress r_liteprofile

4.2. Configure miniOrange as Service Provider (SP) in LinkedIn

Go to https://www.linkedin.com/secure/developer?newapp= in order to create a new application. Click on Create Application button to create a new application.

Enter the required details and click on the Create app button to save your changes.

Here you need to verify the provided page. If the verification of the page is not done, then SSO will not work.

Navigate to Products section and then select Sign in with LinkedIn.

Copy the Client Id and the Client Secret and save it in your miniOrange OAuth App configuration under Client Id and the Client Secret text fields respectively.

Ionic SSO LinkedIn: Update-configuration

To get the Redirect URL:

Go to miniOrange Admin Console.
From the left navigation bar select Identity Provider.

Copy the Callback URL as Redirect URL required for next step.

Copy the Redirect/ Callback URl from above step and enter it under OAuth 2.0 -> Authorized Redirect URLs text box. Click on the Add button adjacent to the text box to save it. Finally, click on the Update button to save your configurations. (image on the next page).

IonicSSO: oauth sso linkedin redirect url

4.1. Configure Facebook as OAuth 2.0 Provider in miniOrange.

Go to miniOrange Admin Console.
From the left navigation bar select Identity Providers >> Add Identity Provider.

Select OAuth2.0

Enter the following values:

IdP Name	Facebook
IdP Display Name	Choose appropriate Name
Client ID	From step 4.2
Client secret	From step 4.2
Scope	public_profile email

4.2. Configure miniOrange as Service Provider (SP) in Facebook

First of all, Login/ Signup in Facebook developer console at https://developers.facebook.com/

IonicSSO Facebook: SSO developer console

Go to My apps.

Click on Create app to create a new app.

Select what your app is going to work for.

Enter the required details and click on create app.

Complete the security check and click on Submit button.

Select Facebook Login by clicking on the set up button .

Ionic Social Login SSO: Facebook: SSO login setup

Select Facebook Login >> Settings under Products option in the navigation bar.

Ionic Social Login SSO: Facebook: SSO login setting

To get the Redirect URL:

Go to miniOrange Admin Console.
From the left navigation bar select Identity Provider.

Copy the Callback URL as Redirect URL required for next step.

Under Client OAuth Settings, enter the Callback/Redirect URL in the Valid OAuth Redirect URIs field. Click on the Save button to save your configurations.
Most importantly, your Callback/Redirect URI should be https and not http. It is mandatory while configuring Facebook as an OAuth Server.

Ionic Social Login SSO: Facebook: SSO client oauth setting

Go to Settings -> Basic to view your App Id and App Secret (Refer to the image below).

Ionic Social Login SSO: Facebook: SSO client oauth basic setting

You have successfully completed your Facebook App OAuth Server side configurations.

4.1. Configure Apple Apps as OAuth 2.0 Provider in miniOrange.

Go to miniOrange Admin Console.
From the left navigation bar select Identity Providers >> Add Identity Provider.

Select OAuth2.0

Fill in the details shown in the below image.

IDP Name:	Apple ID
OAuth Authorize Endpoint	https://appleid.apple.com/auth/authorize?response_mode=form_post
OAuth Access Token Endpoint*	https://appleid.apple.com/auth/token
Client ID*	{Your service id} e.g. com.john.serviceid
Client Secret*	eyJraWQiOiJCOTJQUDg1VUw4IiwiYWxnIjoiRVMyNTYifQ.eyJpc3MiOiJFW....

Click Save.

4.2. Configure miniOrange as Service Provider (SP) in Apple Apps

Go to https://developer.apple.com click on Account and Login with your Apple developer account.

Click on Certificates, Identifiers and Profiles in Apple Account.

In the left menu Click on Identifiers and after that click on the Plus Icon(blue color). Click on Continue for the next 2 pages of Apple Account.

Enter Description and Bundle ID for the App ID. (The Bundle ID is best when it’s a reverse-dns style string.)

In the Capabilities section scroll down and select sign up with apple. Click on Edit and select Enable as a primary App Id and click on Save. Click on Continue and then click on Register.

In the right corner click on Continue and after that Register button.
Again click the Plus icon( blue color). Select Service IDs and click on Continue.

Enter Description and Identifier( Identifier would be your client id - Copy this id and Paste in the above field of Client ID). and click on the Continue and after that Register button.

Click Keys from the left menu.Click on the Plus icon to register a new key.

Give your Key a name, and select Sign In with Apple and click on Configure button

Select your Primary Id and click on the Save button and after that at the right corner click on Continue and Register button.

Click on the Download button once the key is downloaded click on the Done button.

In the left menu click on Identifiers.
At the right top click on App IDs.
Select Service IDs from the drop-down menu.

Select your Service Id from the List.
Select Sign In with Apple and click on Configure button<./li>
Select the Primary App Id from the drop-down, and Enter the Domain and Redirect URL in Domains and Subdomains and Return URLs respectively and click on the Next button (You will get the Domain name and Redirect URL from miniOrange dashboard).

Verify the details and click on the Done button. After that at the right corner click on the Continue button.
Copy the Identifier value and click on the Save button.

Enter the Identifier value in the App Id field and copy the downloaded key value in App secret field of the Apple Login instruction miniOrange plugin.

Generating Secret Key

Download the Ruby installer from the following link https://rubyinstaller.org/downloads/ and then install it.
Search for the Start command prompt with ruby open the ruby command prompt and install the JWT gem by running the following command on the command line: gem install jwt.
Copy the below code in a file and save the file with the .rb extension. Keep this .rb file and downloaded .p8 file in the same folder.
Enter the name of downloaded file example= "key.P8", key_id , client_id, team_id in the code

require 'jwt'
key_file = 'key.P8'
team_id = ''
client_id = ''
key_id = ''
ecdsa_key = OpenSSL::PKey::EC.new IO.read key_file
headers = {
'kid' => key_id
}
claims = {
'iss' => team_id,
'iat' => Time.now.to_i,
'exp' => Time.now.to_i + 86400*180,
'aud' => 'https://appleid.apple.com',
'sub' => client_id,
}
token = JWT.encode claims, ecdsa_key, 'ES256', headers
puts token

Open Ruby command prompt and run the above code using the following command: ruby filename.rb.
You will be provided with your Client secret key. Copy and save the secret key; you will need it to configure Apple ID in miniOrange Dashboard.

Contents

Ionic Single Sign-On SSO

Connect with External Source of Users

Follow the step-by-step guide given below for Ionic Single Sign-On (SSO):

1. Configure Ionic in miniOrange

2. Adding Script on Ionic's End

3. Test SSO Configuration

Using IDP Initiated Login

Not able to configure or test SSO?

4. Login Using Social Provider (Optional)

External References

Want To Schedule A Demo?

Single Sign-On

Multi-factor Authentication

Adaptive Authentication

Lifecycle Management

STAY CONNECTED

Contents

Ionic Single Sign-On SSO

Connect with External Source of Users

Follow the step-by-step guide given below for Ionic Single Sign-On (SSO):

1. Configure Ionic in miniOrange

2. Adding Script on Ionic's End

3. Test SSO Configuration

Using IDP Initiated Login

Not able to configure or test SSO?

4. Login Using Social Provider (Optional)

4.1. Configure Google Apps as OAuth 2.0 Provider in miniOrange.

4.2. Configuring miniOrange as Service Provider (SP) in Google Apps

4.1. Configure LinkedIn as OAuth 2.0 Provider in miniOrange.

4.2. Configure miniOrange as Service Provider (SP) in LinkedIn

4.1. Configure Facebook as OAuth 2.0 Provider in miniOrange.

4.2. Configure miniOrange as Service Provider (SP) in Facebook

4.1. Configure Apple Apps as OAuth 2.0 Provider in miniOrange.

4.2. Configure miniOrange as Service Provider (SP) in Apple Apps

Generating Secret Key

External References

Want To Schedule A Demo?

Single Sign-On

Multi-factor Authentication

Adaptive Authentication

Lifecycle Management

Strictly Necessary Cookies

Always Active

Performance Cookies

Always Active
