Atlassian Cloud SSO (Single Sign-On) for Okta using SAML

Download And Installation

• Log into your Jira instance as an admin.
• Navigate to Apps → Explore more apps from the header menu.
• Next, search for the miniOrange OAuth/OpenID SSO app.
• Click on Try it free to begin a new trial of the app.
• On the menu bar click on Apps and locate the OAuth/OpenID SSO app and click .

Part 1: Setup miniOrange with Atlassian Access

Step 1. Setup miniOrange as an Identity Provider

• Login into miniOrange Admin Console.
• Go to Apps and click on the Add Application button.

• In Choose Application Type click on All Apps dropdown and select SAML/WS-FED application type.

• Search for Atlassian Cloud (SAML) in the list.

• Enter the following values in the respective fields, you will receive these values after creating an app in Atlassian access. Refer this step.

• Custom Application Name	Any name would be fine
  SP Entity ID or Issuer	You will receive after configuring Atlassian Access App
  ACS URL	You will receive after configuring Atlassian Access App

• Also make sure that Sign Response & Sign Assertion both options are turned ON. Then click on the Save button.
• Once the App is successfully Created, Select that App and then click on Metadata option to get app’s Metadata.

• Since we are using miniOrange as a Brokering Service in this solution, Go to Information required to authenticate via external idp section as highlighted, and Click on Show Metadata Details.

• After clicking on the Show Metadata Details button you can see the metadata details.
You will need these details while configuring an Atlassian Access app.

• In the left sidebar hover on Users then click on Users List

• Click on Add User and enter details to enforce Single Sign On(SSO) on that user.

Make sure that the user created here will also exist in the Atlassian Cloud.

Step 2. Setup Atlassian Cloud

• Now login to Atlassian Cloud Admin Console.
• Select your organization and then select the Security tab. Click on SAML Single Sign-On from the left sidebar.

• You can click on Instructions for different Identity Providers. It provides a help page for specific IDP and Attribute Names for Attribute Mapping.

• Here you will get the SAML Configuration Instructions for different identity providers as listed. Click on Got it.

• Click on Add SAML Configuration.

• You will be redirected to the Add SAML Configuration window. Enter IDP Entity ID, SSO URL and the public certificate. Click on the Save Configuration button.
You will get these details in the metadata details section after configuring the miniorange app. Refer this step

• Now you will be shown SP Entity ID & SP ACS URL as shown below. These details will be needed in miniOrange app configuration. Now set up the Authentication Policies by clicking on the View Authentication Policies.

• Click on Add Policy.

• Enter the policy name and add the policy.
• Now under Single Sign-On, click on Enable Single Sign-On.

• Then click on the Members tab besides the settings tab and click on Add Members.
The Single Sign On(SSO) will work only for Added Members.

• Enter details and click on Add Members.
The user must be present in both Atlassian and miniOrange.

Step 3. Test Atlassian Cloud - miniOrange Configuration

• Go to Atlassian Login Page.
• Enter email and click on Continue. Then you will be redirected to miniOrange Login Page
• After logging into miniOrange, you will be successfully logged into Atlassian Cloud Dashboard

Part 2: Configuring miniOrange with Okta

Step 1. Configure Okta as IDP

• Log into Okta Admin Console. For developer account, switch to Classic UI to configure app.
• Go to the Application from the left menu and then click on Add Application.

• Click on Create New App. Select SAML 2.0 as Sign on method and click on Create.

• In General Settings, enter App Name and click on Next.
• In SAML Settings, enter the Single Sign On URL as ACS (AssertionConsumerService) URL, Audience URI (SP Entity ID) as SP Entity ID from miniOrange.


 Assigning Groups/People

• After creating and configuring the app go to the Assignment Tab in Okta. Here we select the peoples and groups you want to give access to log in through this app. Assign this to the people/group you would to give access to.

• After assigning the people/groups to your app, go to Sign On tab.
• Click on View Setup Instructions to get the SAML Login URL (Single Sign on URL), Single Logout URL, IDP Entity ID and X.509 Certificate. You can use these details to manually setup Okta as IDP in miniOrange or use Identity Provider Metadata Link to configure the Okta as IDP using URL.

Keep the metadata details or Metadata URL handy for further configurations.

Step 2. Configure miniOrange as SP

• Go to miniOrange Admin Console.
• From the left navigation bar select Identity Provider. Then click on Add Identity Provider

• Select SAML tab.

You can get the metadata details of miniOrange app either by clicking on the link shown by "Click here" in the yellow block, Or you can also get the details after creating the app. Keep these details handy as we will need these in configuring Okta.

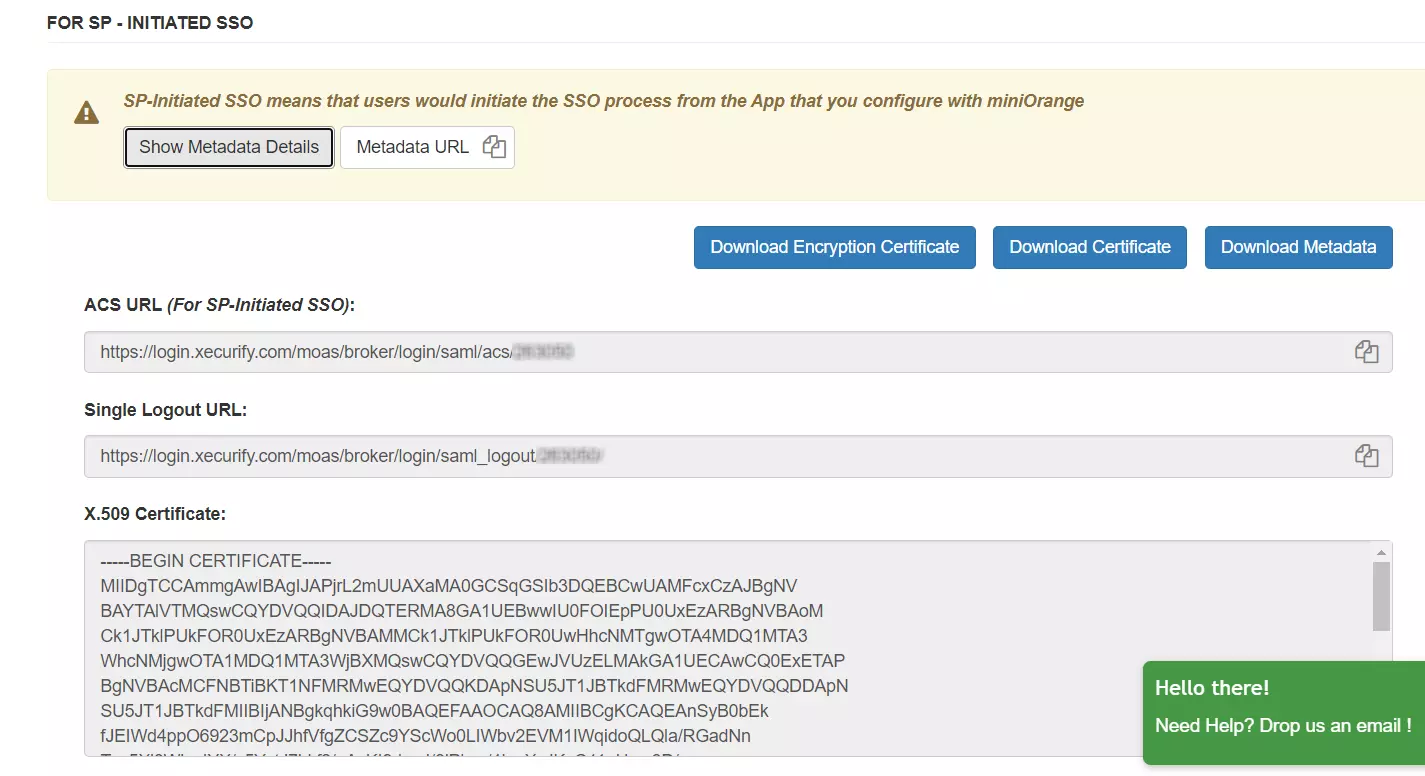

• Click on Show Metadata details under For SP - INITIATED SSO. You can either manually enter details or use Metadata URL or File

• Then click on the Add Identity Provider page click on Import IDP Metadata

• Click on Import IDP metadata. Import the metadata file that you will get from Okta.
• If you don't have a metadata file, you can also provide the details manually. You need to configure following endpoints:

IDP Entity ID	Entity ID of IDP
Single Login URL	Login Url from IDP
Single Logout URL	Logout Url from IDP
X.509 Certificate	The public key certificate of your IDP.

• Few other optional features that can be added to the Identity Provider(IDP) are listed in the table below:

Domain Mapping	Can be used to redirect specific domain user to specific IDP
Show IdP to Users	Enable this if you want to show this IDP to all users during Login
Send Configured Attributes	Enabling this would allow you to add attributes to be sent from IDP

• Click on Save.

Step 3. Test Connection between miniOrange and Okta

• Go to the miniOrange Admin Dashboard.
• Go to Identity Providers tab. Then click on select button under the app you just created.

Now you will see TEST SUCCESSFUL in a new popup window. If not, then check if you have missed any of the above step.
