Confluence Using SCIM User And Group Provisioning For Onelogin

User Sync & Group Sync app provisions user and group information from OneLogin to Confluence. Users, groups and directory details can by provisioned using SCIM. SCIM provisioning works based on events performed on IDP. This way the administrator only needs to manage user accounts in OneLogin.
This reduces the administration time required to create users and groups in Confluence modules such as Confluence.


You can refer the steps to configure OneLogin method with the Confluence SCIM from the video or documentation given below


Download and Installation

  • Log into your atlassian instance as admin.
  • Navigate to the settings menu and Click Manage Apps.
  • Click on Find new apps .
  • Locate miniOrange User and Group Sync app.
  • Click Try free to begin a new trial or Buy now to purchase a license.
  • Enter your information and click Generate license when redirected to MyAtlassian.
  • Click Apply license.

Step 1: Get SCIM Client Details

  • In the Configuration tab, please select OneLogin provider.
    • Select OneLogin as SCIM Provider
  • In the popup, please select SCIM method to perform user and group synchronization.
    • Select SCIM as Usersync method
  • In SCIM configuration, Please enter App Name and click on Save Settings button. Copy the SCIM Base URL and SCIM Bearer Token, these will be used later to configure SCIM application on OneLogin.
    • SCIM Configuration Details

Step 2: Setup OneLogin SCIM Configurations

  • Log in to your Onelogin Portal. Add SCIM Provisioner with SAML.
    • SCIM OneLogin, SCIM Provisioner
  • Start configuring it by adding Display Name.
    • SCIM OneLogin, Find application
  • Go to Configuration Tab. Enter SCIM Base URL, SCIM Bearer Token (which you will find in Step 1 above).
  • Enable provisioning from SCIM Provisioner with SAML application.
    • SCIM Configuration Details
  • Approve the provisioing request. On success, status will change to 'provisioned'.
    • SCIM OneLogin, Provisionoiong request

Step 3: LDAP Sync Settings

  • The miniOrange user sync app now provides support for LDAP Sync. Follow the instructions to configure the LDAP directory. By configuring the LDAP directory, you can synchronize all attributes from your LDAP directory and choose the attributes you wish to include in Confluence.
    • LDAP sync in user and gruop provisioning in Jira, Confluence, Bitbucket User Sync
  • Once you have successfully configured the LDAP directory in Confluence, you can test the specific user’s attributes by using the Test Sync button.
    • LDAP sync configuration in user and gruop provisioning in Jira, Confluence, Bitbucket User Sync
  • To test your configuration, enter an username(sAMAccountName) from your directory's user data and click on the Search User button. You will then be able to view the details of the searched user.
    • LDAP sync test in user and gruop provisioning in Jira, Confluence, Bitbucket User Sync

Step 4: User Sync Settings

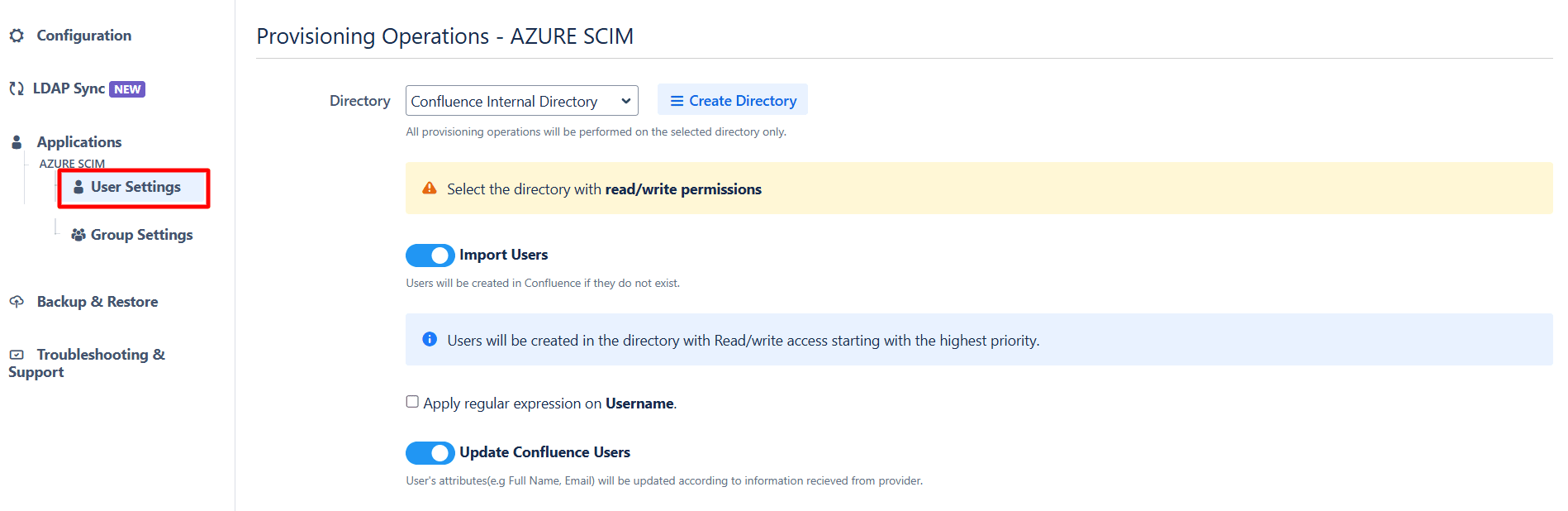

  • Select the User Sync Settings tab from the left sidebar. Here you can configure different settings about user creation and updation.
    • User and gruop provisioning in Jira, Confluence, Bitbucket User Sync
  • You can select the directory, enable or disable user import, update process.
  • The user can be automatically enabled or disabled here based on IDP configuration.
  • You also have an option to set Default Project Lead and Default Component Lead.
  • Attribute mapping enables you to map your attributes sourced from the IDP to Confluence attributes. Through this section you can map your Confluence attributes to the attributes coming from IDP. By default, username attribute corresponds to the username/userPrincipalName attribute, email corresponds to the email/mail attribute, and displayName corresponds to the full name attribute. However, if you want to map these Confluence attributes with other attributes coming from IDP, you can use this feature to change the attribute mapping configurations.
    • Attribute Mapping using user and gruop provisioning in Jira, Confluence, Bitbucket User Sync
  • User sync also supports mapping of custom attributes. Here, you can create custom attributes and automatically assign values to them from the IDP (Identity Provider). Select the desired attributes from the IDP that you want to display in Confluence and provide a name for the custom attributes to be shown in Confluence.
    • Custom Attribute Mapping with user and gruop provisioning in Jira, Confluence, Bitbucket User Sync
  • Custom fields will be displayed in the user profile section as shown below
    • Custom Attributes in user and gruop provisioning in Jira, Confluence, Bitbucket User Sync

Step 5: Group Sync Settings

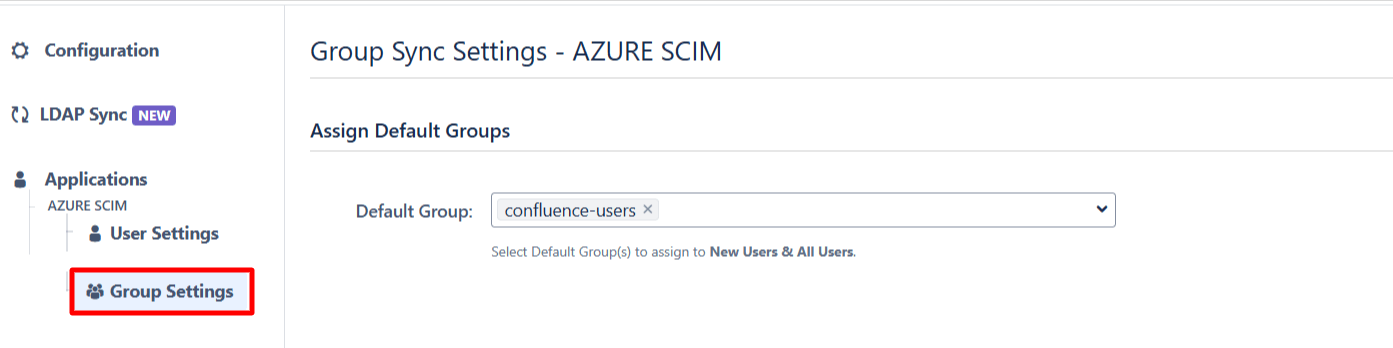

  • Select the Group Sync Settings tab from the left sidebar. Here you can configure different settings about group creation and group mapping.
    • User and gruop provisioning in Jira, Confluence, Bitbucket Group Sync
  • Here you can configure Default groups for new and all users.
  • You can set Manual Group Mapping or On-The Fly Group Mapping.

    • 1. Manual Group Mapping -

    • Here you can manually map Confluence groups with the groups from IDP.
    • You can also configure to import IDP groups, filter groups and whether to keep existing users or not.
    User and gruop provisioning in Jira, Confluence, Bitbucket Manual Group Mapping

    2. On-The Fly Group Mapping -

    • Here users will be assigned to groups in Confluence whose group name is the same as groups from IDP. If the group doesn't exist in Confluence then it will be created.
    • You can configure to keep the existing user groups, filter groups and apply regular expressions on the groups.
    User and gruop provisioning in Jira, Confluence, Bitbucket On The Fly Group Mapping

Step 6: Synchronization Process

  • To perform user sync, click on the Synchronize option of your newly created app.
  • When the synchronization is complete, you will be able to view newly created and updated user information in Confluence's User Management section.
    • User and gruop provisioning in Jira, Confluence, Bitbucket Synchronize

Step 7: Multiple IDPs

  • The plugin allows for configuring SCIM provisioning on your Confluence to accommodate your specific use case. To add another IDP, simply navigate to the "Configured IDPs" section. Select on Add new App to configure multiple provisioning connections.
    • User and gruop provisioning in Jira, Confluence, Bitbucket Manual Group Mapping
