Jira Using SCIM User And Group Provisioning For Oracle Identity Cloud Service (IDCS)

User Sync & Group Sync app provisions user and group information from Oracle Identity Cloud Service (IDCS) to Jira, Confluence and Bitbucket. Users, groups and directory details can by provisioned using SCIM and REST API. SCIM provisioning works based on events performed on IDP. This way the administrator only needs to manage user accounts in Oracle Identity Cloud Service (IDCS). This reduces the administration time required to create users and groups in Atlassian modules such as Jira, Confluence, and Bitbucket.

Download And Installation

Log into your atlassian instance as admin.
Navigate to the settings menu and Click Manage Apps.
Click on Find new apps .
Locate miniOrange User and Group Sync app.
Click Try free to begin a new trial or Buy now to purchase a license.
Enter your information and click Generate license when redirected to MyAtlassian.
Click Apply license.

Step 1: Get SCIM Client Details

In the Configuration tab, please select Oracle provider.

In the popup, please select SCIM method to perform user and group synchronization.

In SCIM configuration, Please enter App Name and click on Save Settings button. Copy the SCIM Base URL and SCIM Bearer Token, these will be used later to configure SCIM application on Oracle.

Step 2: Setup Oracle SCIM Configurations

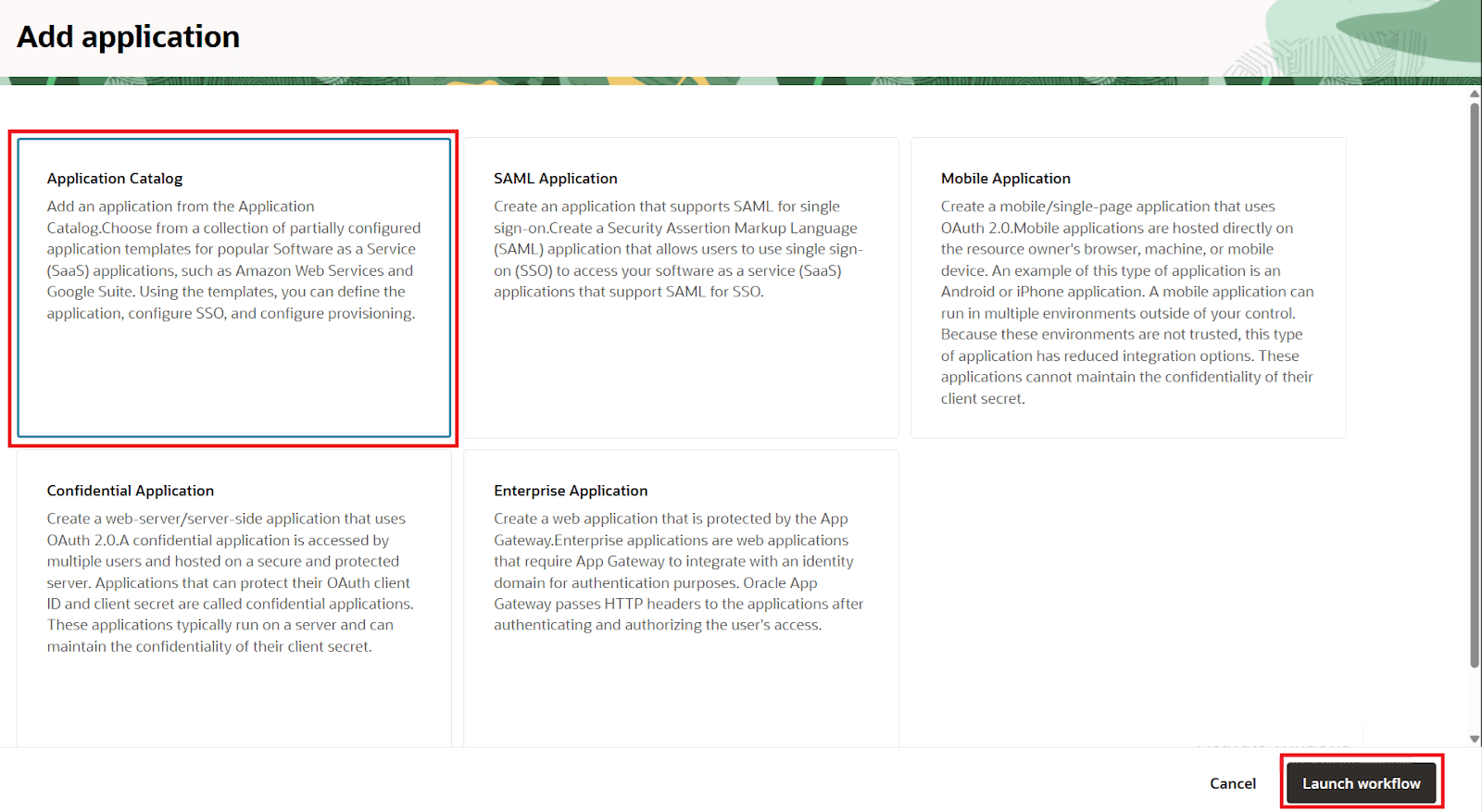

Access the Oracle Identity Cloud Service (IDCS) administration console, select Applications, and then click Add.
Click on App Catalog.

User provisioning with Oracle of SCIM Standard, Oracle login

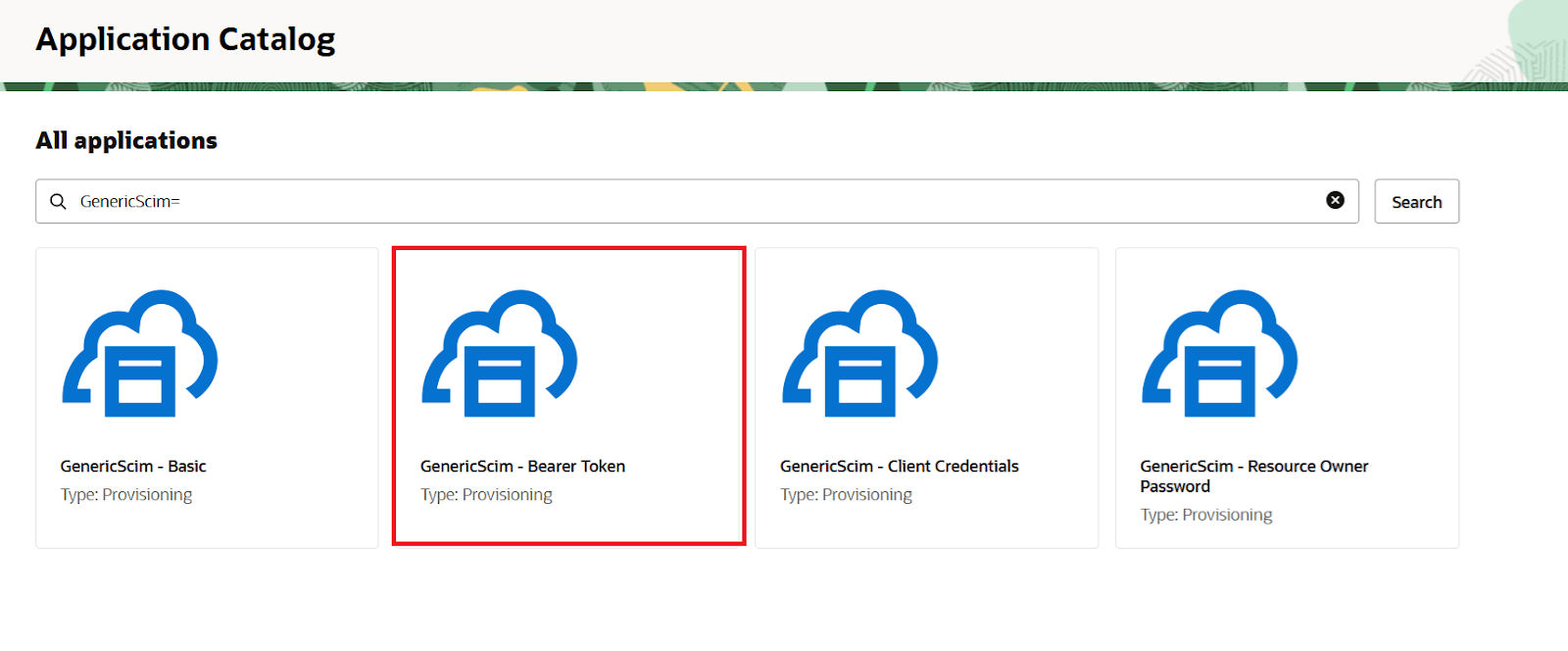

Select Provision as an Type of Integration and search for GenericScim and click on the Add button under GenericScim - Bearer Token app.

User provisioning with Oracle Cloud of SCIM Standard, App Catalog

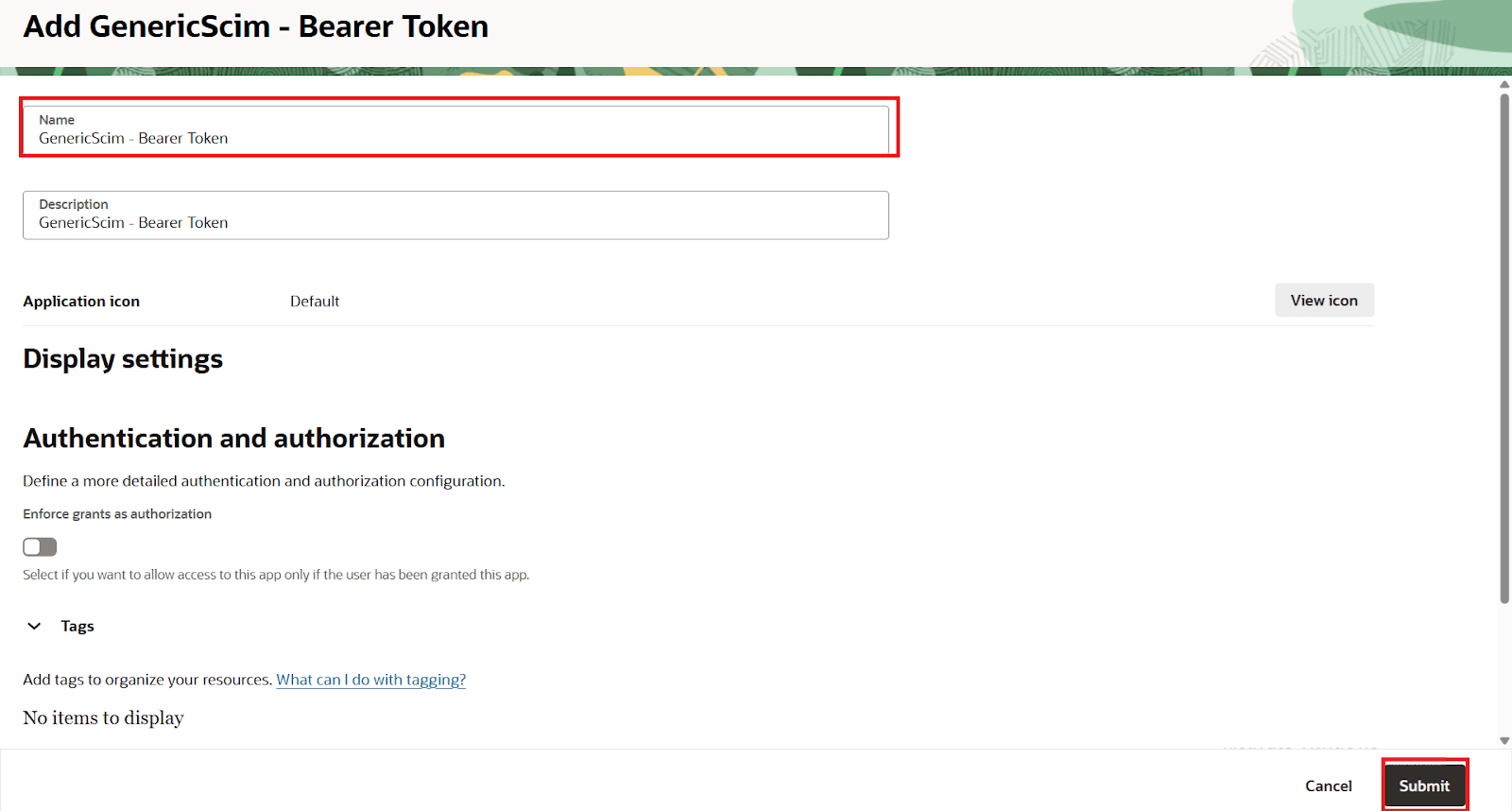

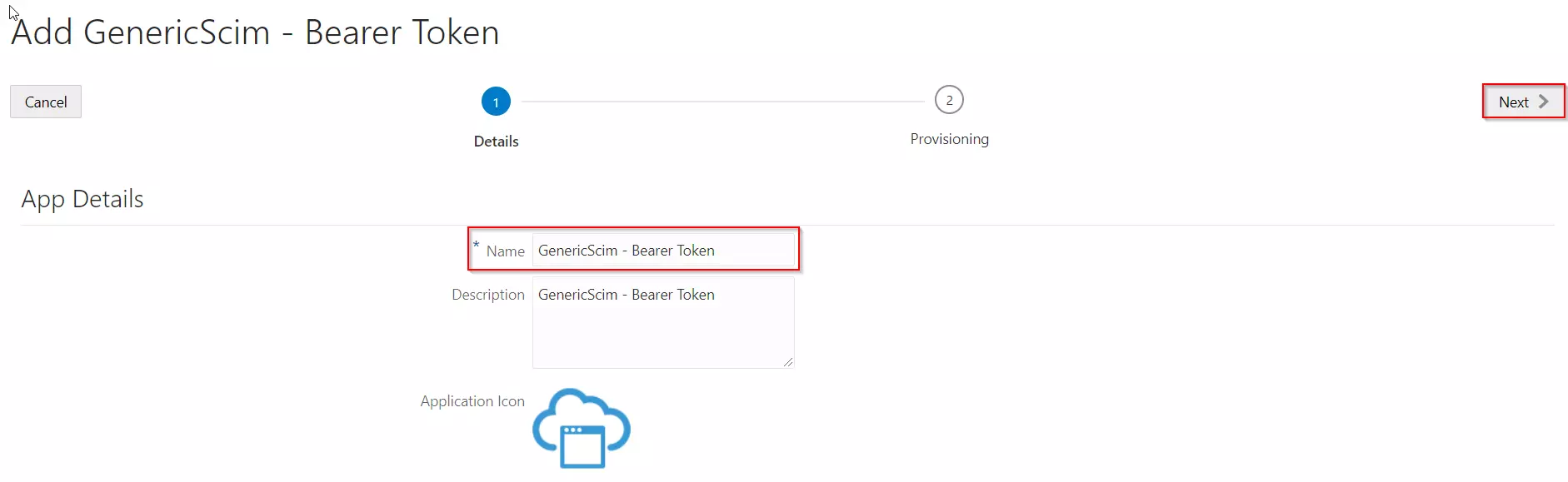

Enter the name of your application and click on the Next button.

User provisioning with Oracle Cloud of SCIM Standard, Configure App

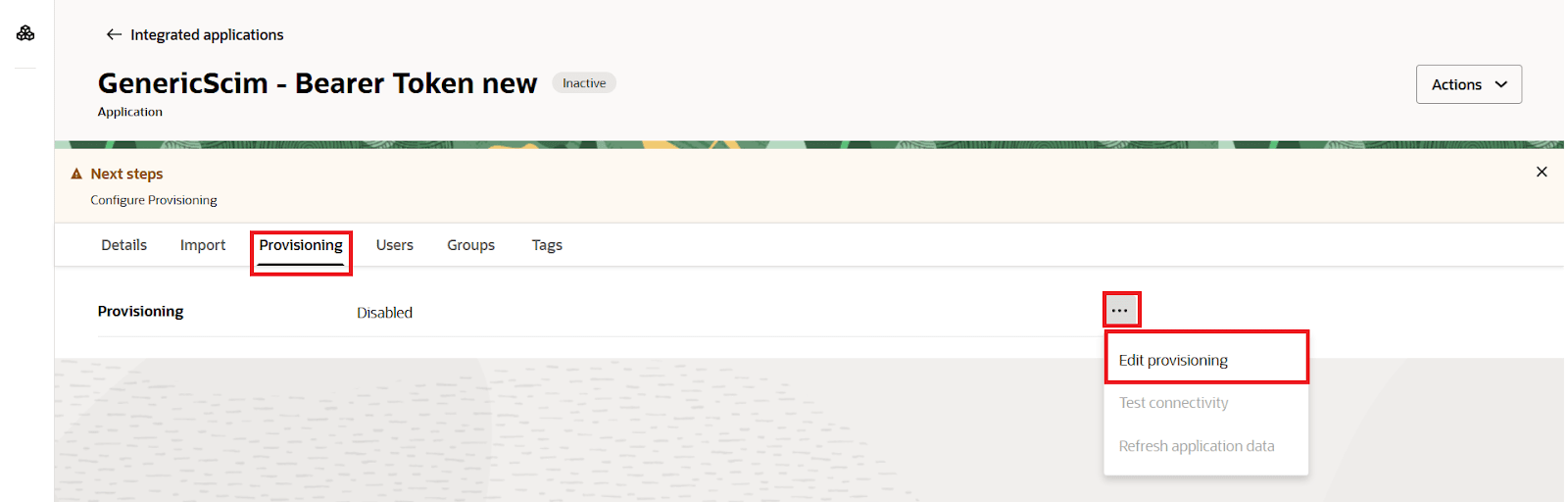

Enable the Enable Provisioning option.
Enter following Application details.

Host Name	Application Base URL	e.g. https://jira.atlassian.com:8080
Base URI	Only the path of SCIM Base URL from the plugin	/plugins/servlet/usersync/scim
Access Token	Bearer Token	Bearer token from plugin

Click on the Test Connectivity button.

User provisioning with Oracle Cloud of SCIM Standard, Enter Provisioning Details

Select Provisioning Operation according to the operations you want to perform.

User provisioning with Oracle Cloud of SCIM Standard, Provisioning Operations

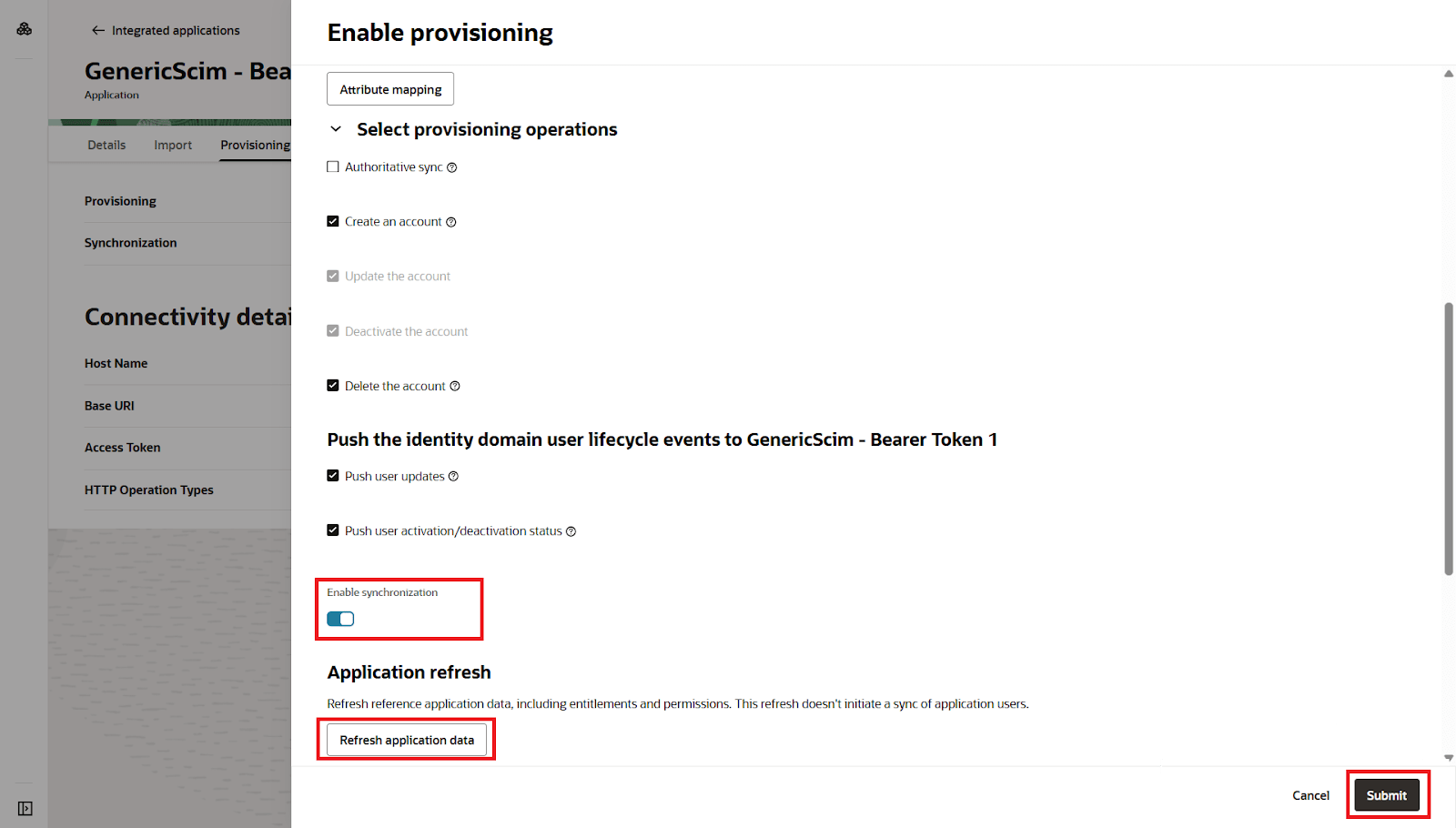

Enable the Enable Synchronization option and click on the Refresh Application Data button to refresh application data.

User provisioning with Oracle Cloud of SCIM Standard, Refresh App Data

Click on the Finish button to complete the configuration.

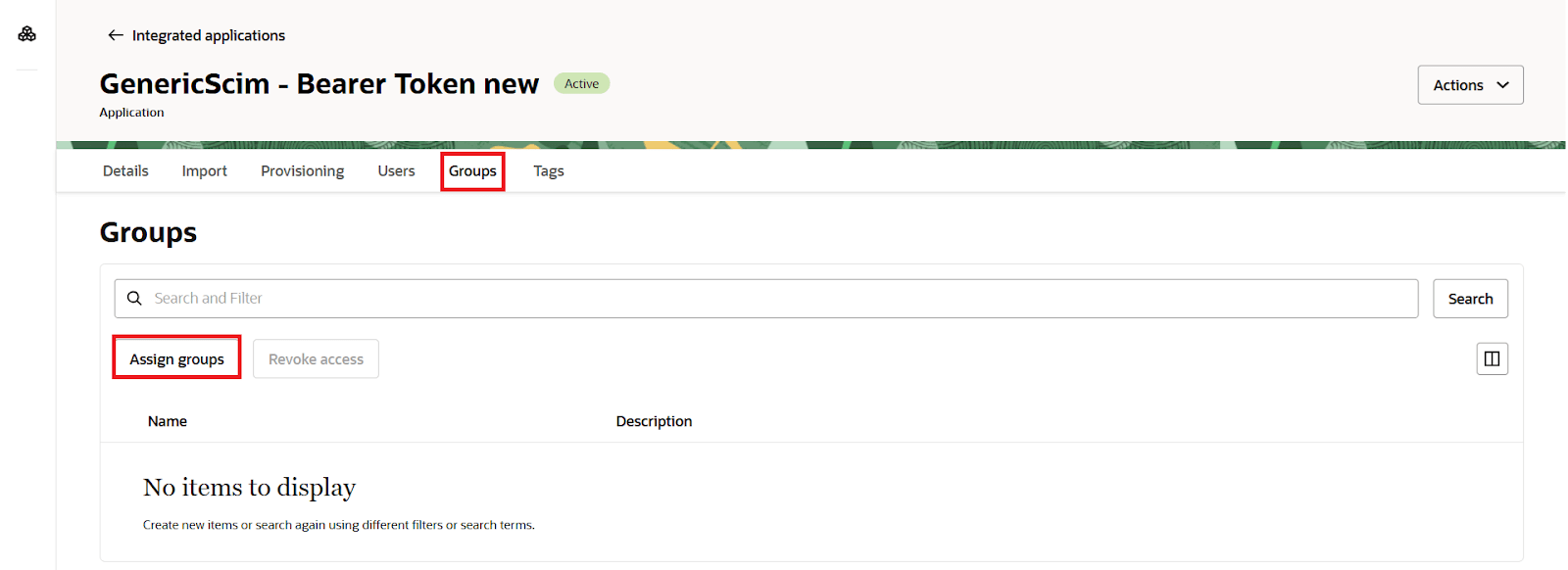

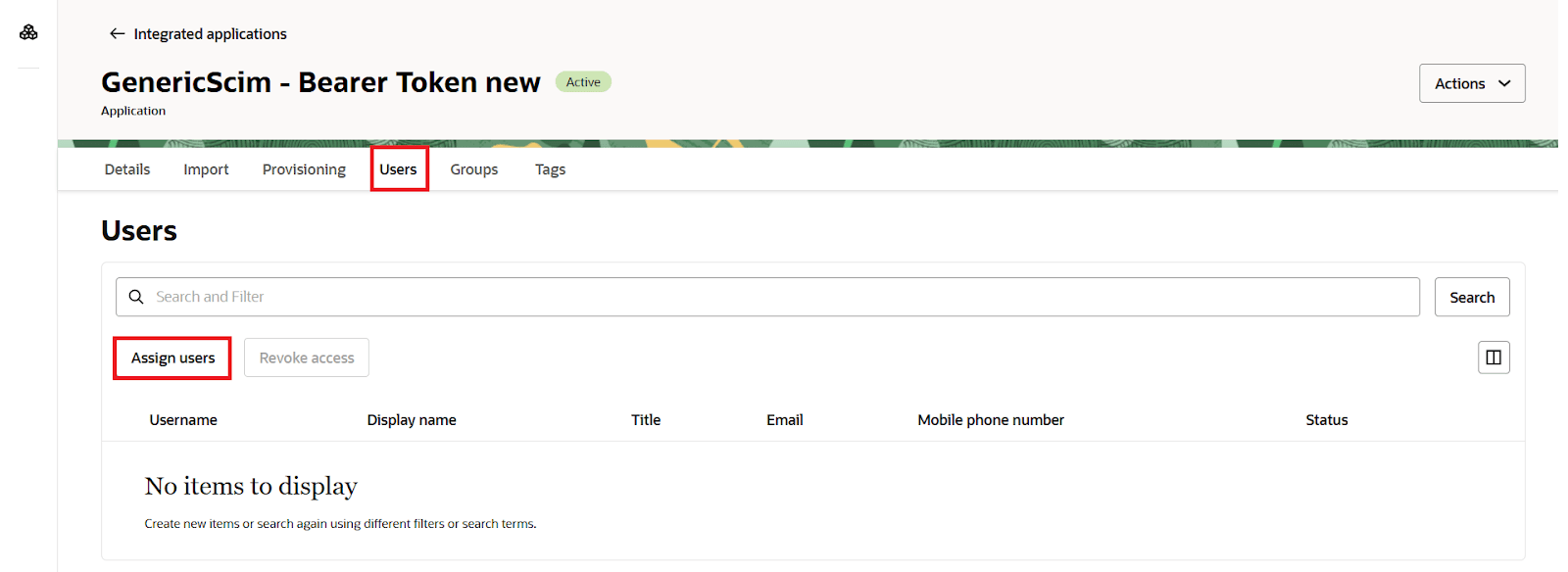

Assign the users/groups to your application by clicking on the Users / Groups tab respectively.

User provisioning with Oracle Cloud of SCIM Standard, Add Users

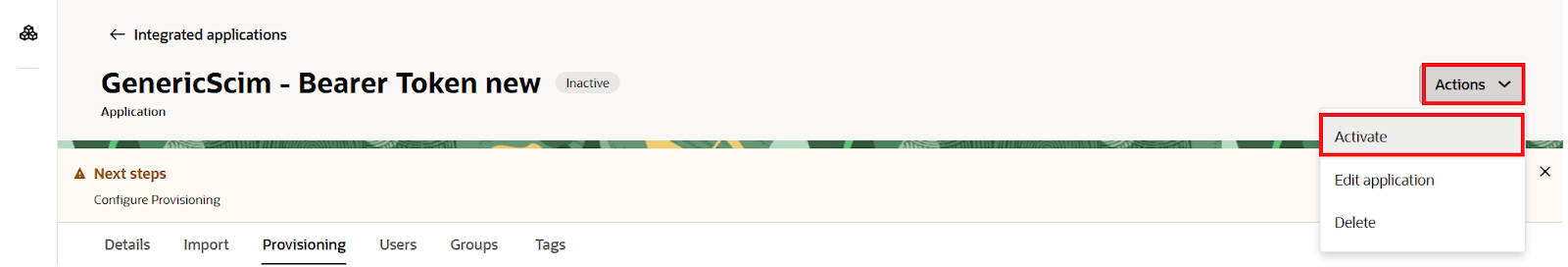

Activate the application, once it gets created.

User provisioning with Oracle Cloud of SCIM Standard, Activate app

Step 3: User Sync Settings

Select the User Sync Settings tab from the left sidebar. Here you can configure different settings about user creation and updation.

User and group provisioning in Jira, Confluence, Bitbucket User Sync

You can select the directory or can create a new one. Furthermore, you can choose from the following operations for provisioning users.
You also have an option to set Default Project Lead and Default Component Lead.

Step 4: Group Sync Settings

Select the Group Sync Settings tab from the left sidebar. Here you can configure different settings about group creation and group mapping.

User and group provisioning in Jira, Confluence, Bitbucket Group Sync

Here you can configure Default groups for new and all users.
You can set Manual Group Mapping or On-The Fly Group Mapping.

1. Manual Group Mapping -

Here you can manually map Jira groups with the groups from IDP.
You can also configure to import IDP groups, filter groups and whether to keep existing users or not.

User and group provisioning in Jira, Confluence, Bitbucket Manual Group Mapping

2. On-The Fly Group Mapping -

Here users will be assigned to groups in Jira whose group name is the same as groups from IDP. If the group doesn't exist in Jira then it will be created.
You can configure to keep the existing user groups, filter groups and apply regular expressions on the groups.

User and group provisioning in Jira, Confluence, Bitbucket On The Fly Group Mapping

Step 5: Synchronization Process

To perform user sync, click on the Synchronize option of your newly created app.
When the synchronization is complete, you will be able to view newly created and updated user information in Jira's User Management section.

User and group provisioning in Jira, Confluence, Bitbucket Synchronize

Step 6: Multiple IDP

The plugin allows for configuring SCIM provisioning on your Jira to accommodate your specific use case. To add another IDP, simply navigate to the "Configured IDPs" section. Select on Add new App to configure multiple provisioning connections.
