User Sync and Group Sync for Microsoft Entra ID (Previously known as Azure AD)

User Sync & Group Sync app syncs user and group information from Microsoft Entra ID (Previously known as Azure AD) to Jira, Confluence and Bitbucket. Users, groups and directory details can by synced user group attributes. Sync can be performed manually, scheduled to run after set time intervals, or during user login.
This way the administrator only needs to manage user accounts in Microsoft Entra ID (Previously known as Azure AD). This reduces the administration time required to create users and groups in Atlassian modules such as Jira, Confluence and Bitbucket.

Try it for free

Download and Installation

Log into your atlassian instance as admin.
Navigate to the settings menu and Click Manage Apps.
Click on Find new apps.
Locate miniOrange User and Group Sync app.
Click Try free to begin a new trial or Buy now to purchase a license.
Enter your information and click Generate license when redirected to MyAtlassian.
Click Apply license.

1: Setup Microsoft Entra ID (Previously known as Azure AD)

Log in to Microsoft Entra ID (Previously known as Azure AD) Portal

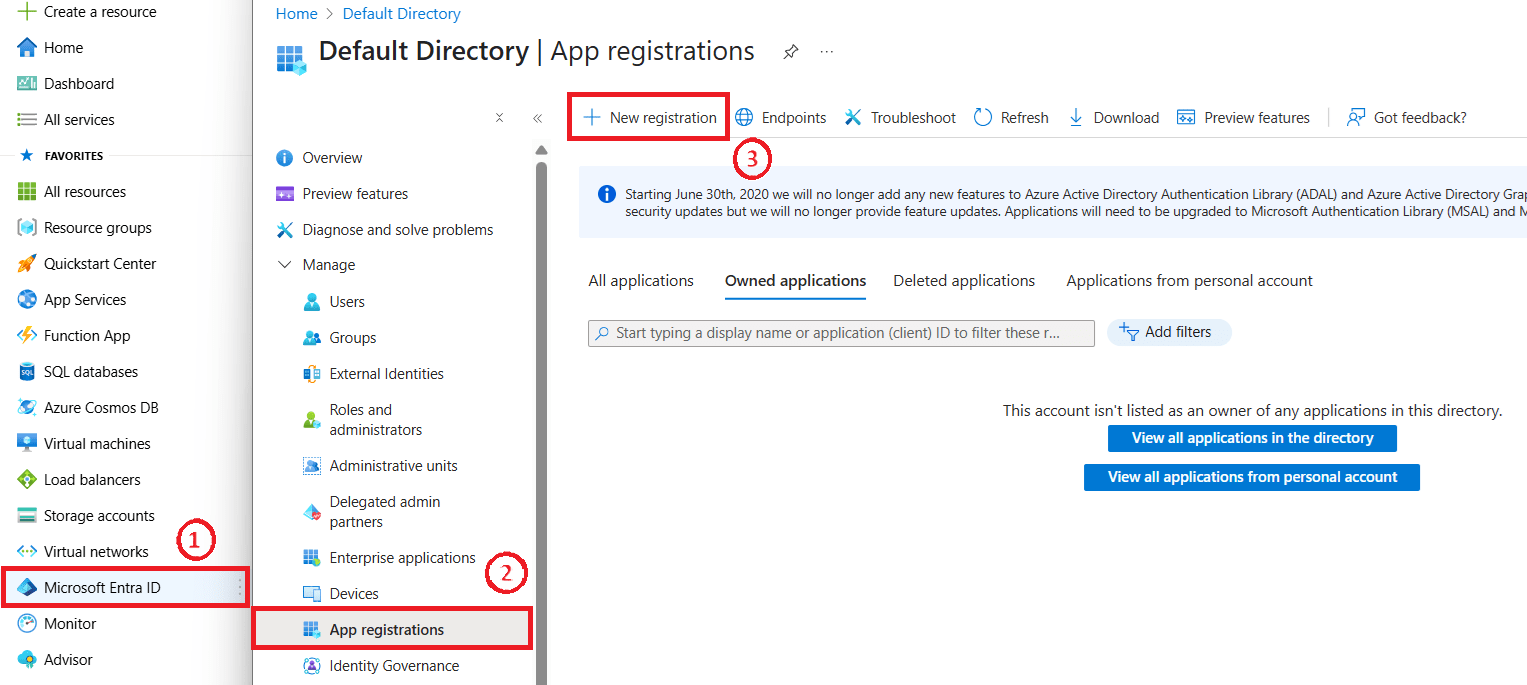

Select Microsoft Entra ID ⇒ App Registrations. Click on New Application Registration.

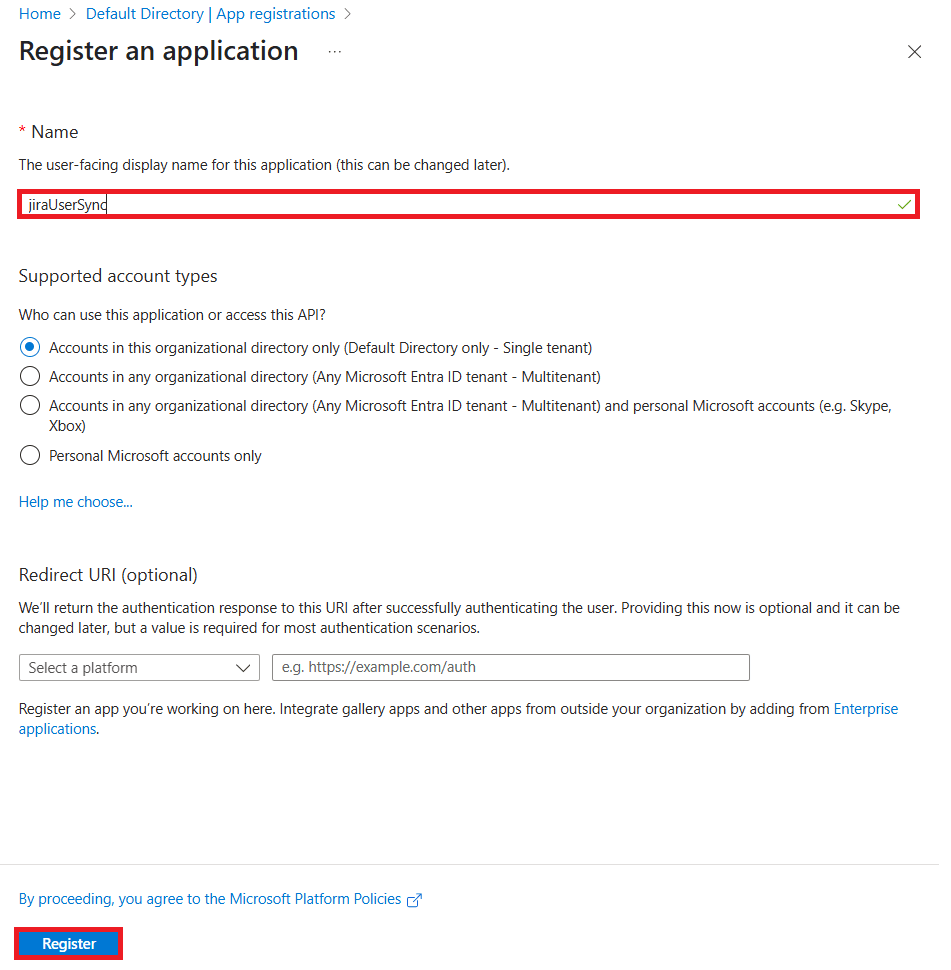

Assign a Name and choose the account type.In the Redirect Url, leave it blank and click on Register button.

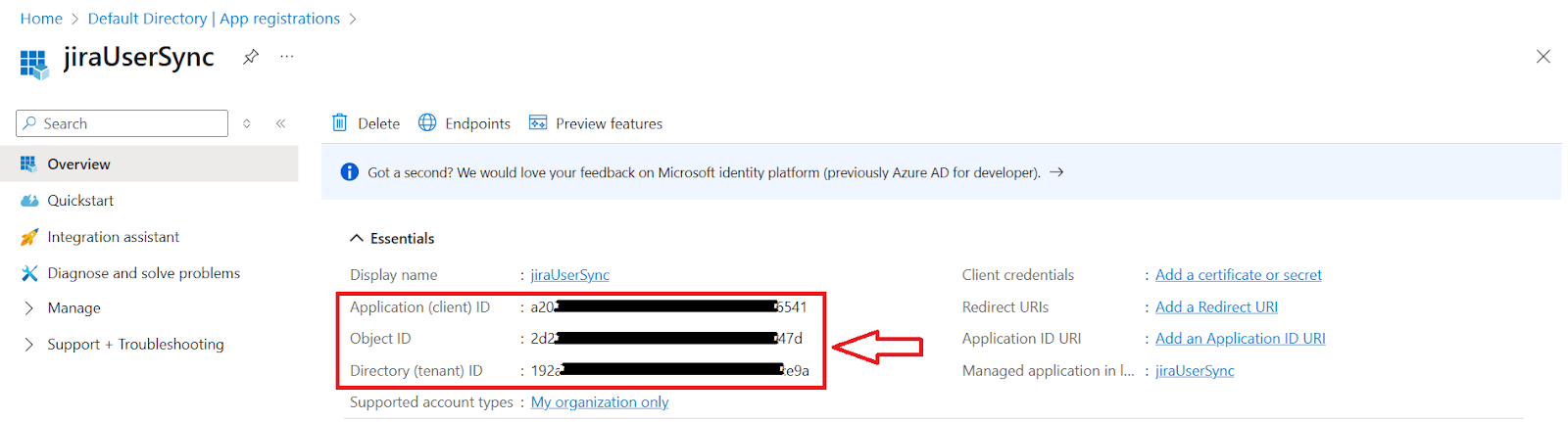

After Registration you can see the "Application ID" and the "Directory (tenant) ID". You will need both to setup the Microsoft Entra ID (Previously known as Azure AD) in User Sync & Group Sync app.

sync users, groups and directory details using Azure AD into Jira and Confluence

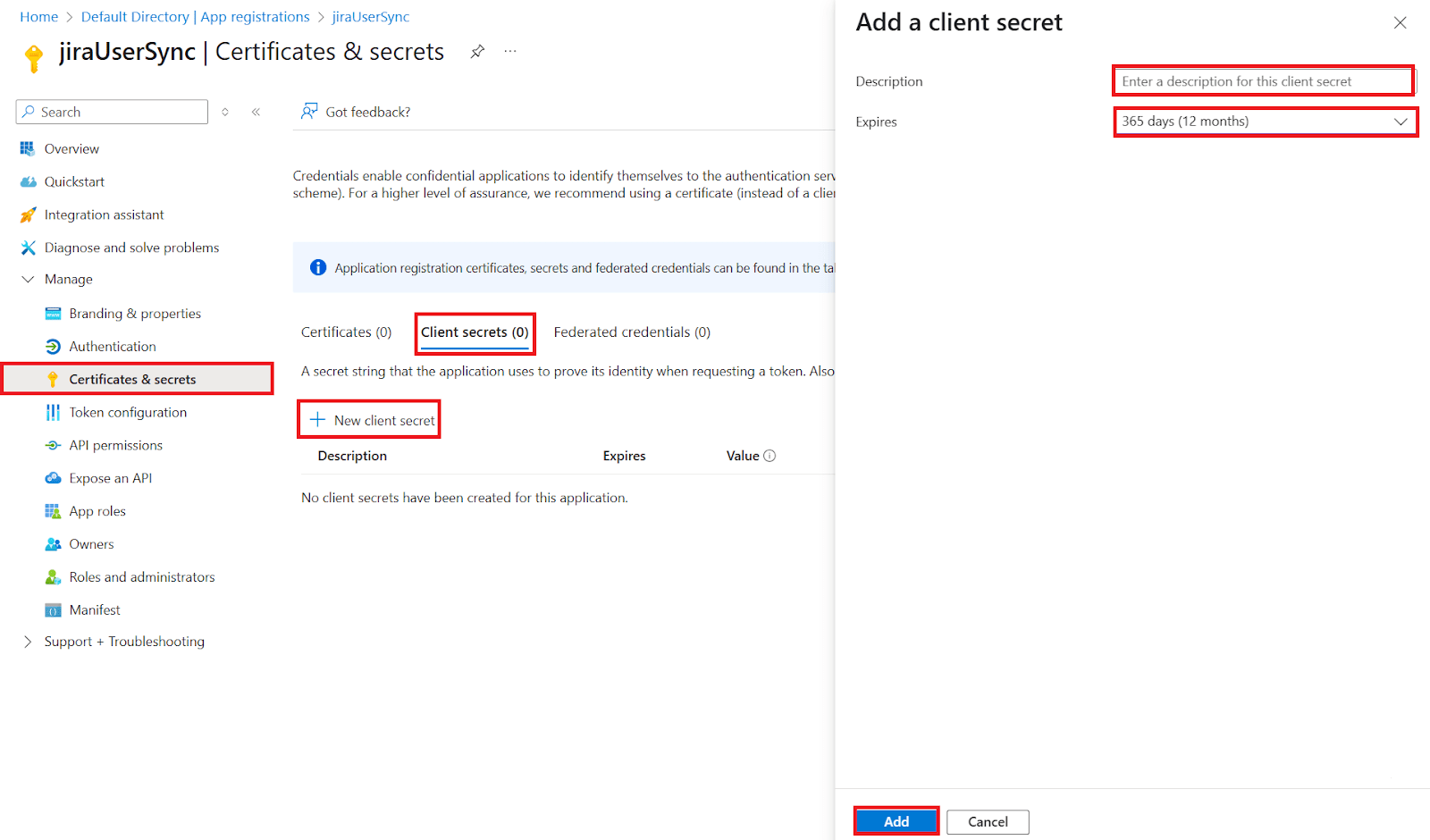

In the Left panel click on Certificates & secrets. Click on the New client secret button. It will show you the popup for adding a new client secret.

Add "secret key" in the descripton and add expires in 1 year and click on Add button.Copy client secret keep it handy it will reqired while Setup User Sync app.

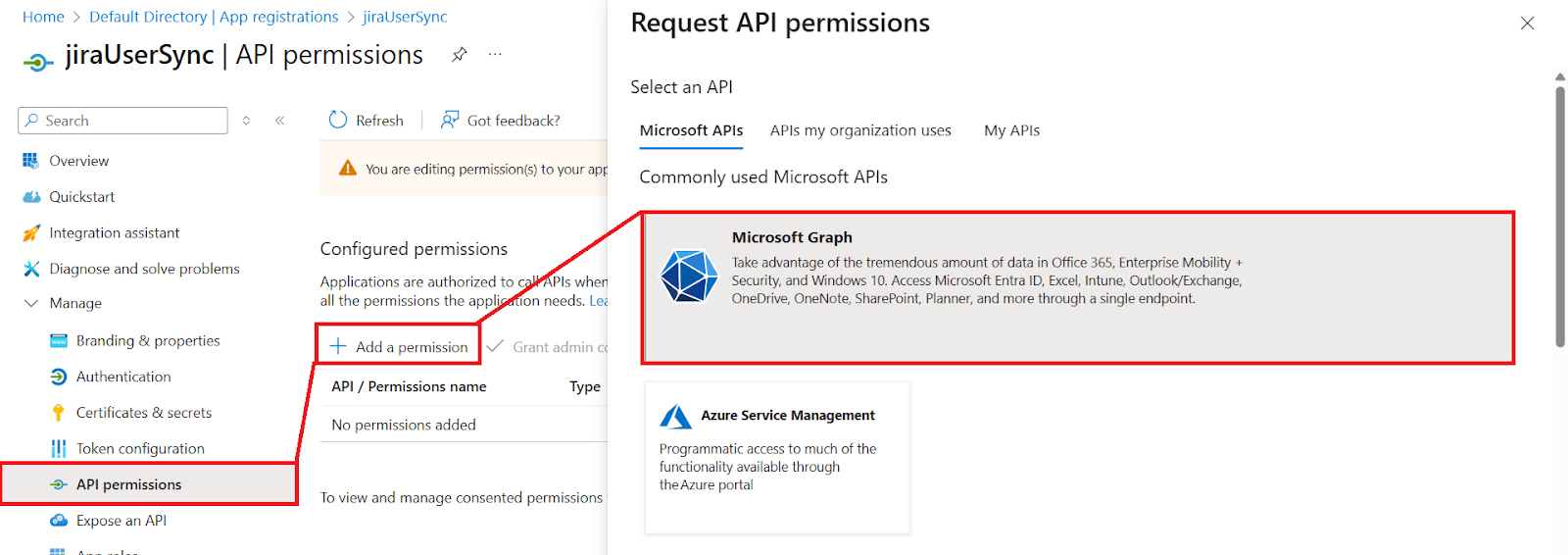

Select API permissions ⇒ Add a permission. Click on Microsoft Graph.

Click Application permissions and Select below permissions.

Search for Directory and select the Directory.Read.All permission. Then search for user and select User.Read.All.

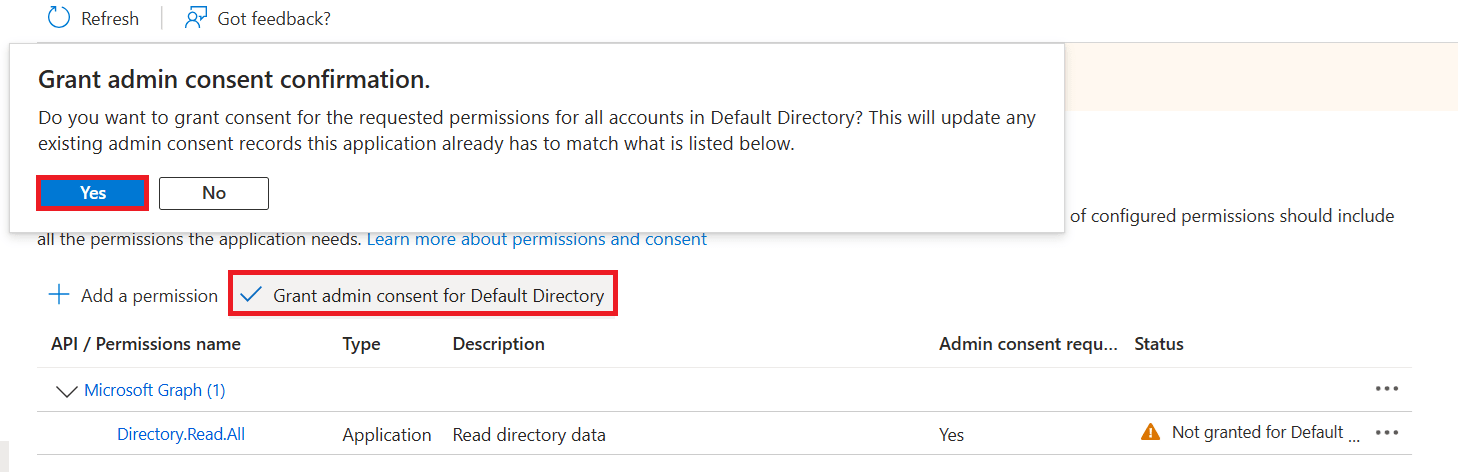

After assigning permissions you have to click on Grant admin consent for Demo.

2: Setup User Sync & Group Sync app

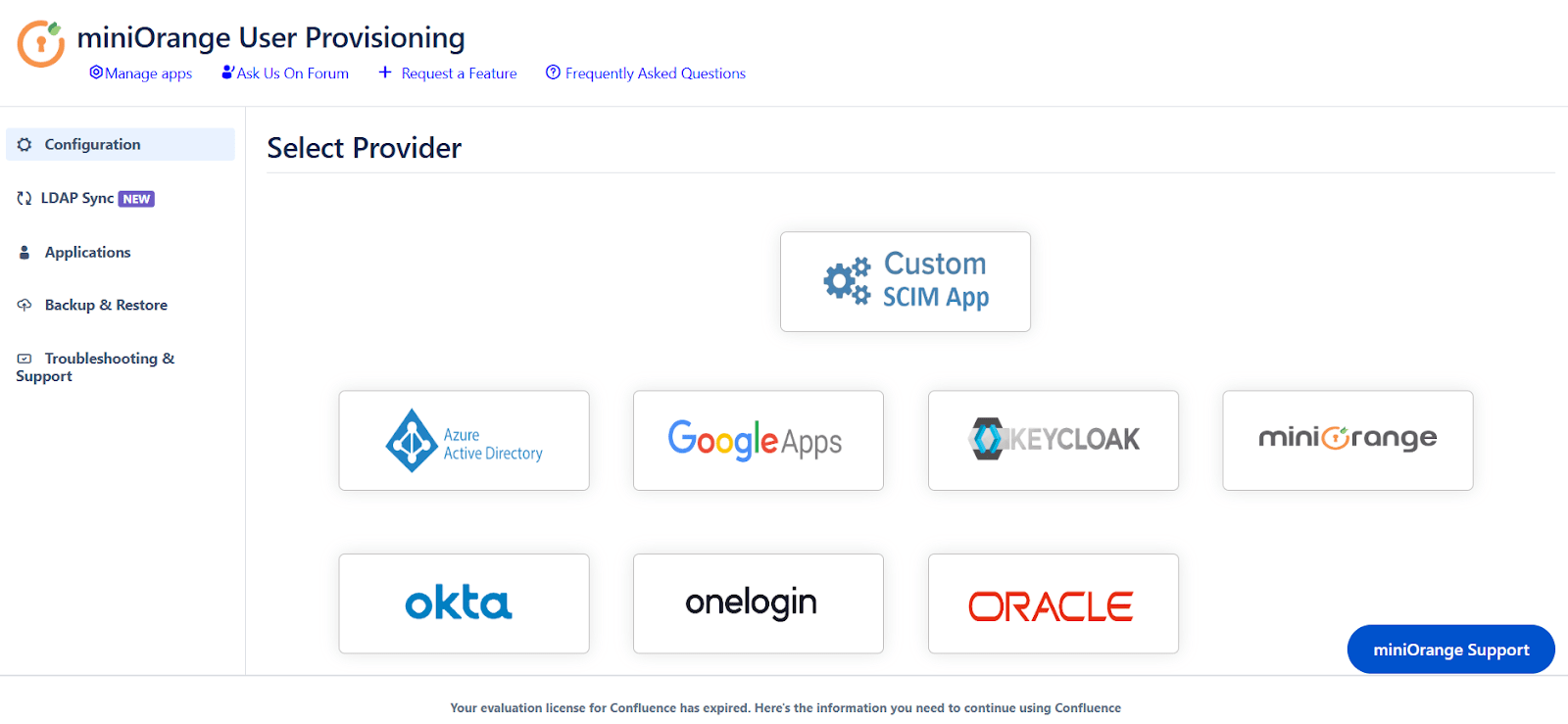

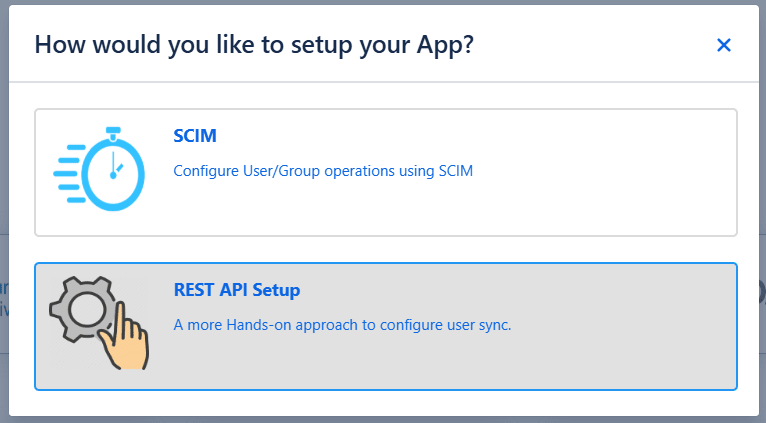

Open User Provisioning/Sync for Jira plugin configuration. Go to the Configuration tab. Select Microsoft Entra ID (Previously known as Azure AD) from the options.

Fill in values according to the table below.

App Name	Enter unique name which you can identify in applist after configuration
Client ID	Enter Microsoft Entra ID (Previously known as Azure AD) Application (client) ID which you will find in overview page of the Microsoft Entra ID (Previously known as Azure AD) app.
Client Secret	Enter Microsoft Entra ID (Previously known as Azure AD) Client secret which were created while Setting up Microsoft Entra ID (Previously known as Azure AD).
Tenant ID	Enter Microsoft Entra ID (Previously known as Azure AD) Directory (tenant) ID which you will find in overview page of the Microsoft Entra ID (Previously known as Azure AD) app.
User Name Attribute	Specify the attribute name where the username from Microsoft Entra ID (Previously known as Azure AD) will be stored.
Sync users from this group	Provide a list of Microsoft Entra ID (Previously known as Azure AD) groups from which users will be synced.
Set Scheduler Time Interval	To synchronize user and group information automatically, choose the scheduler time interval.

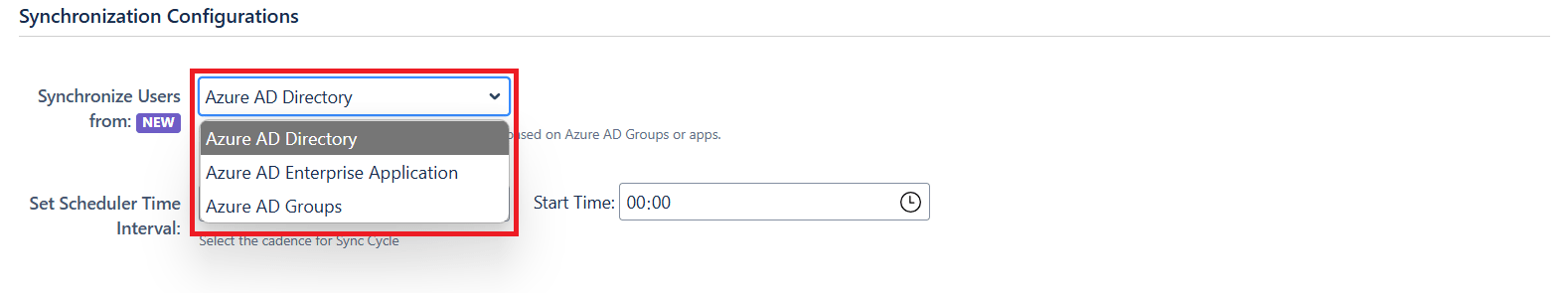

You can select any option from the Synchronization Configuration to sync users from Azure to Confluence, such as Azure AD Directory, Azure AD Enterprise Application, or Azure AD Groups.

Click on Save Settings.

3: User Sync Settings

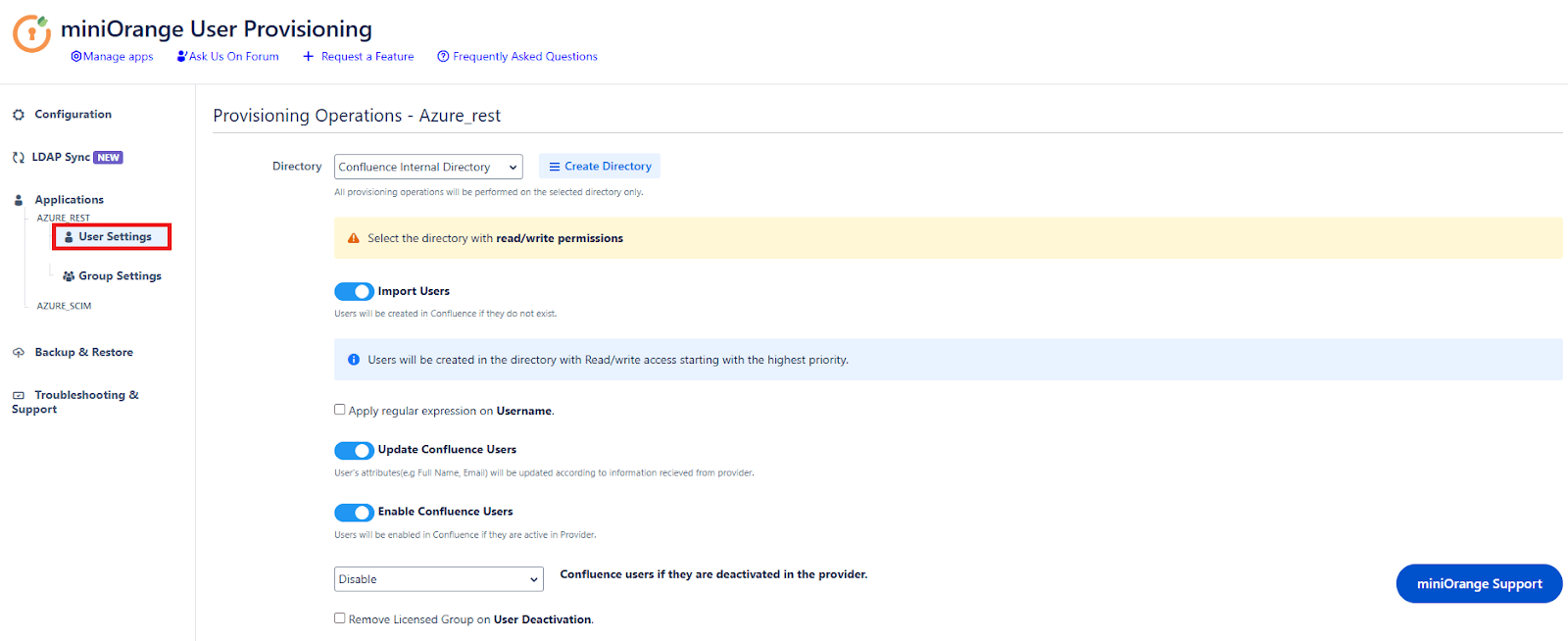

Select the User Sync Settings tab from the left sidebar. Here you can configure different settings about user creation and updation.

You can select the directory or can create a new one. Furthermore, you can choose from the following operations for provisioning users.
You also have an option to set Default Project Lead and Default Component Lead.

3.1 Attribute Mapping

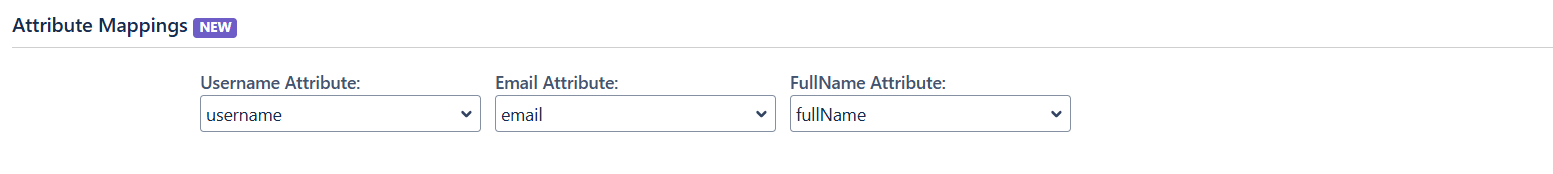

Attribute mapping enables you to map your attributes sourced from the IDP to Jira attributes. Through this section you can map your jira attributes to the attributes coming from IDP. By default, username attribute corresponds to the username/userPrincipalName attribute, email corresponds to the email/mail attribute, and displayName corresponds to the full name attribute. However, if you want to map these jira attributes with other attributes coming from IDP, you can use this feature to change the attribute mapping configurations.

3.2 Custom Attribute Mapping

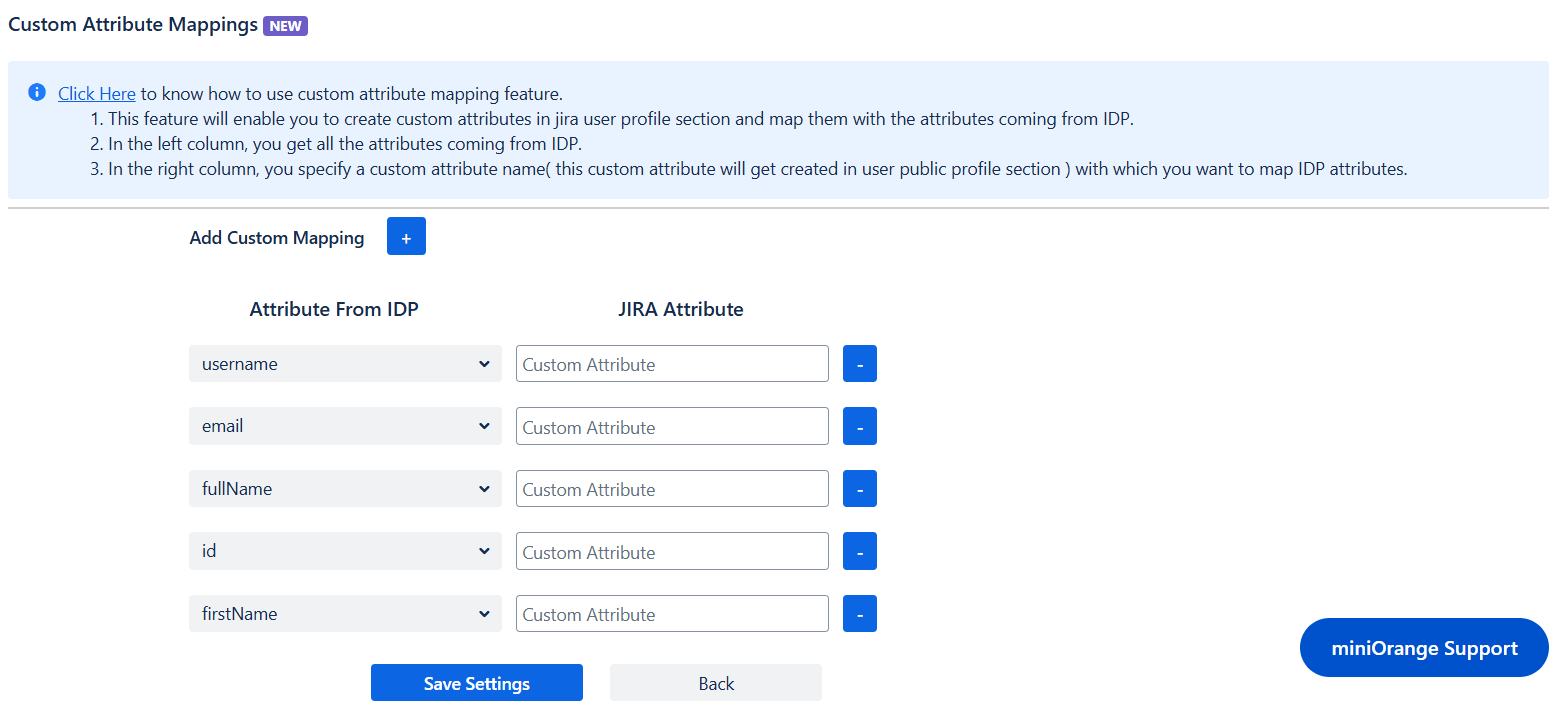

User sync also supports mapping of custom attributes. Here, you can create custom attributes and automatically assign values to them from the IDP (Identity Provider). Select the desired attributes from the IDP that you want to display in Jira and provide a name for the custom attributes to be shown in Jira.

4: Group Sync Settings

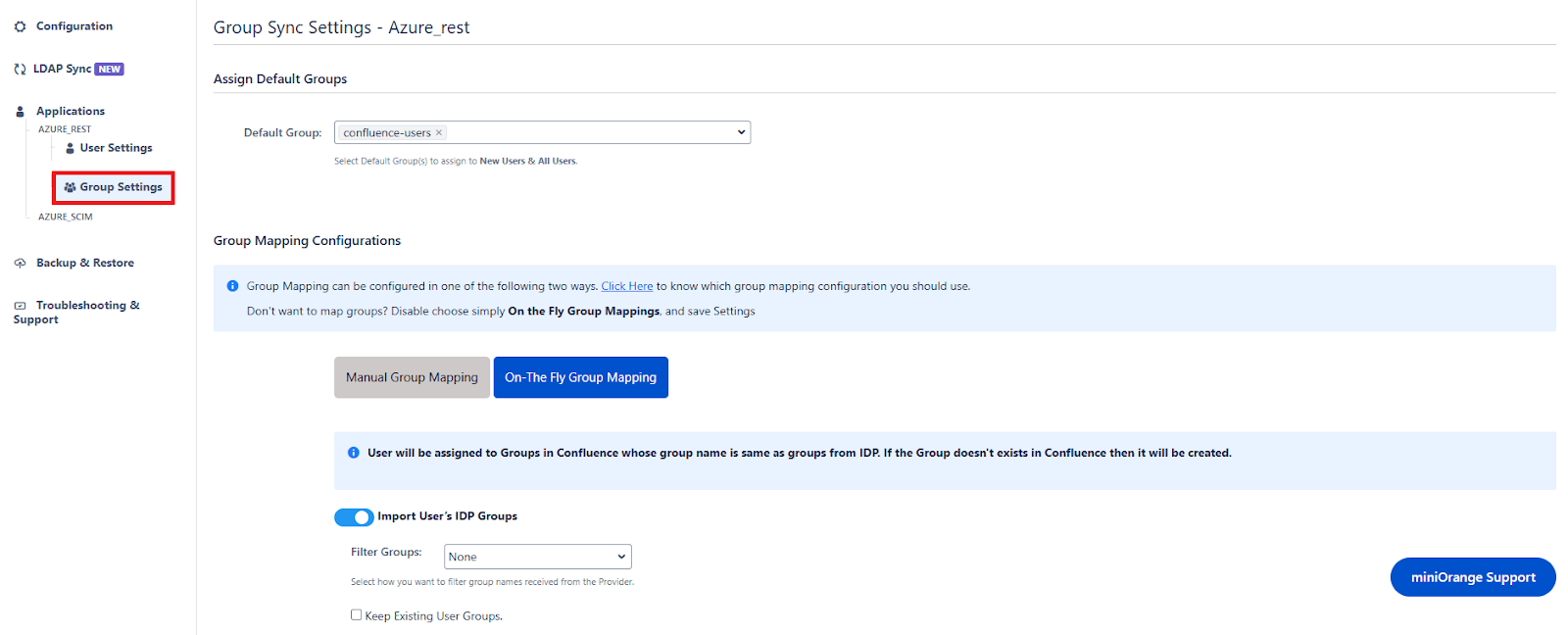

Select the Group Sync Settings tab from the left sidebar. Here you can configure different settings about group creation and group mapping.

Here you can configure Default groups for new and all users.
You can set Manual Group Mapping or On-The Fly Group Mapping.

4.1 Manual Group Mapping

Here you can manually map Bitbucket groups with the groups from IDP.
You can also configure to import IDP groups, filter groups and whether to keep existing users or not.

User and gruop provisioning in Jira, Confluence, Bitbucket Manual Group Mapping

4.2 On-The Fly Group Mapping

Here users will be assigned to groups in Bitbucket whose group name is the same as groups from IDP. If the group doesn't exist in Bitbucket then it will be created.
You can configure to keep the existing user groups, filter groups and apply regular expressions on the groups.

User and group provisioning in Jira, Confluence, Bitbucket On The Fly Group Mapping

5: Synchronization Process

To perform user sync, click on the Synchronize option of your newly created app.
When the synchronization is complete, you will be able to view newly created and updated user information in Bitbucket User Management section.

User and gruop provisioning in Jira, Confluence, Bitbucket Synchronize

6: Multiple IDPs

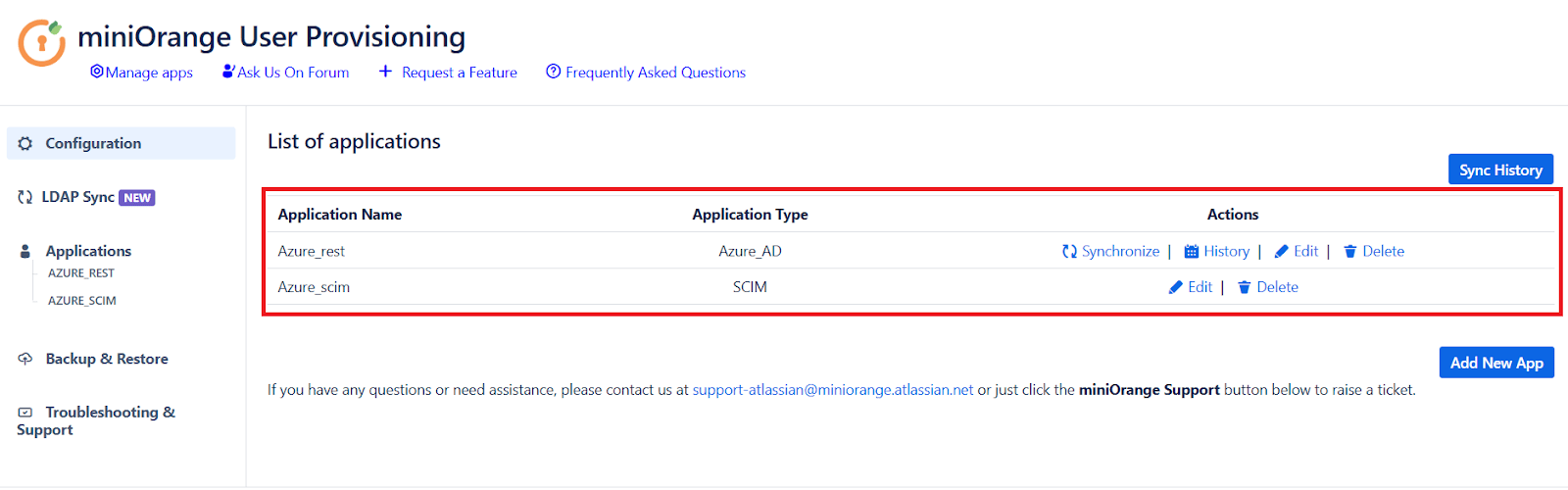

The plugin allows for configuring SCIM provisioning on your SP (Service Provider) to accommodate your specific use case. To add another IDP, simply navigate to the "Configured IDPs" section. Select on Add new App to configure multiple provisioning connections.

7: Sync History

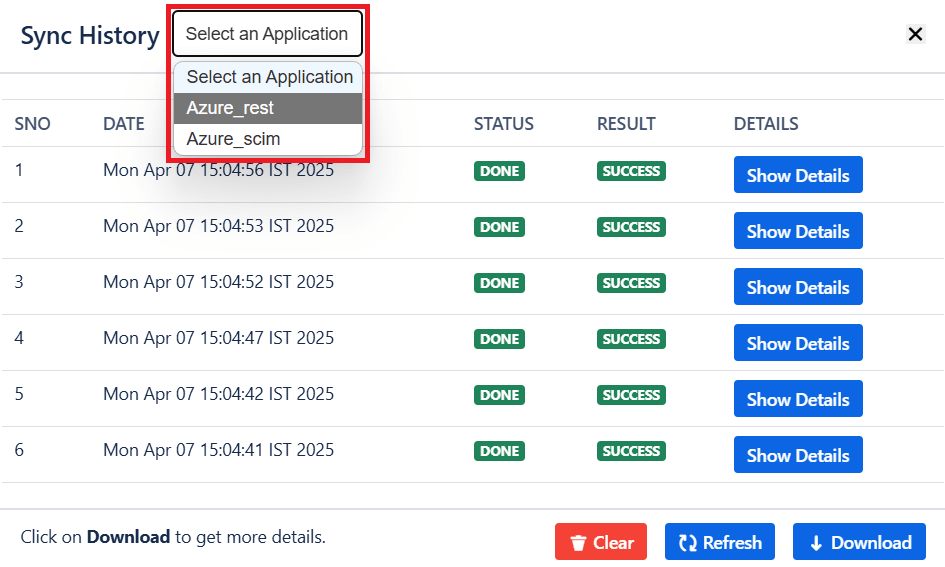

When the synchronization is complete, you will see the logs under the 'Sync History' button. Here, you can select your specific application to view the logs.
