Configure Oracle Service Bus Single Sign-On SSO

Configure Oracle Service Bus SSO in a few simple steps using this setup guide. miniOrange Single Sign-On (SSO) helps you to log in to Oracle Service Bus and other applications using a single set of credentials. Upon enabling SSO for Oracle Service Bus, a person can securely access Oracle Service Bus in one click without having to enter their username and password again.

With miniOrange Oracle Service Bus SSO, you can:

Enable your users to automatically login to Oracle Service Bus
Have centralized and easy access control of the users
Connect easily with any external identity source like Azure AD, ADFS, Cognito, etc

Get Free Installation Help

miniOrange offers free help through a consultation call with our System Engineers to Install or Setup Oracle Service Bus SSO solution in your environment with 30-day free trial.

For this, you need to just send us an email at idpsupport@xecurify.com to book a slot and we'll help you in no time.

Get Help

miniOrange Oracle Service Bus Single Sign-On (SSO) supports the following features:

SP (Service Provider) Initiated Single Sign-On (SSO):
In this flow, a person tries to login to the service provider (Oracle Service Bus account) directly. The request is redirected to the identity provider for authentication. On successfull authentication from the identity provider, the person is given access to the application (Oracle Service Bus account).
IdP (Identity Provider) Initiated Single Sign-On (SSO):
In this flow, a person logs in to the identity provider using his credentials. Now the person can access any of the configured service providers (Oracle Service Bus account, etc.) through the identity provider dashboard without having to enter the credentials again.
Just In Time Provisioning:
This will automate user account creation and pass information in your applications through identity provider. So, when a new user tries to log in to an authorized app for the first time, they trigger the flow of information from the identity provider to the app that's needed to create their account.

Connect with External Source of Users

miniOrange provides user authentication from various external sources, which can be Directories (like ADFS, Microsoft Active Directory, OpenLDAP, AWS etc), Identity Providers (like Microsoft Entra ID, Okta, AWS), and many more. You can configure your existing directory/user store or add users in miniOrange.

Follow the step-by-step guide to setup Oracle Service Bus Single Sign-On (SSO)

1. Configure Oracle Service Bus in miniOrange

Login into miniOrange Admin Console.
Go to Apps and click on Add Application button.

Oracle Service Bus Single Sign-On (SSO) add app

In Choose Application, select SAML/WS-FED from the application type dropdown.

Oracle Service Bus Single Sign-On (SSO) choose app type

Search for Oracle Service Bus in the list, if you don't find Oracle Service Bus in the list then, search for custom and you can set up your application in Custom SAML App.

Oracle Service Bus Single Sign-On (SSO) manage apps

Enter Custom Application Name as Oracle Service Bus
Enter the SP Entity ID or Issuer.
Enter the ACS URL.
Enter the Single Logout URL.
Click on Next to proceed further.

Configure Oracle Service Bus Single Sign-On (SSO)

In the Attribute Mapping tab configure the following attributes as shown in the image below.

Oracle Service Bus Single Sign-On (sso) Add Attribute

To upload respective app logo for a Custom SAML App, click on Upload Logo tab.

Click on Save.

To get miniOrange metadata details in order to configure Oracle Service Bus:

Go to Apps >> Manage Apps.
Search for your app and click on the select in action menu against your app.
Click on the Metadata Option under the Select Dropdown to get the miniOrange Metadata details. You can also click on the Show SSO Link to see the IdP initiated SSO link for Oracle Service Bus.

Go to Metadata link Oracle Service Bus SAML SSO

Here you will see 2 options, if you are setting up miniOrange as IDP copy the metadetails related to miniOrange, if you required to be authenticated via external IDP's (Okta, Azure AD, ADFS, OneLogin, Google Workspace) you can get metadata from the 2nd Section as shown below.

Oracle Service Bus Single Sign-On (sso) Add SAML Application

Keep SAML Login URL , SAML Logout URL and click on the Download Certificate button to download certificate which you will require in Step 2.

Oracle Service Bus Single Sign-On (SSO) Select Metadata details external IDP or miniOrange as IDP

2. Configure SSO in Oracle Service Bus

On the asserting party, configure the SAML Credential mapper with URI/ACS URL - http://openuri.org/sb_proxy_uri, where sb_proxy_uri is the SB transport service URI.
When configuring the Identity Assertion provider on the Service Bus side (the relying party), use the asserting party target URL as the proxy endpoint URI. Do not include the protocol and host information. For example, /sb_proxy_uri.

3. Test SSO Configuration

Test SSO login to your Oracle Service Bus account with miniOrange IdP:

Using SP Initiated Login

Go to your Oracle Service Bus URL, here you will be either asked to enter the username or click on the SSO link which will redirect you to miniOrange IdP Sign On Page.

Oracle Service Bus Single Sign-On (SSO) login

Enter your miniOrange login credential and click on Login. You will be automatically logged in to your Oracle Service Bus account.

Using IDP Initiated Login

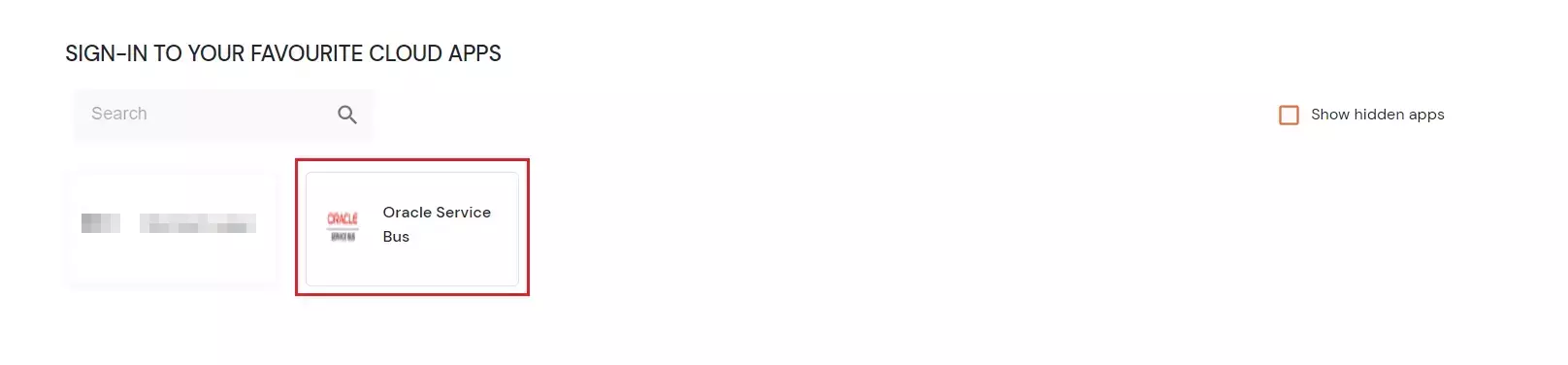

On the Dashboard, click on Oracle Service Bus application which you have added, to verify SSO configuration.

Oracle Service Bus Single Sign-On (SSO) verify configuration

Not able to configure or test SSO?

Contact us or email us at idpsupport@xecurify.com and we'll help you setting it up in no time.

4. Configure Your User Directory (Optional)

miniOrange provides user authentication from various external sources, which can be Directories (like ADFS, Microsoft Active Directory, Microsoft Entra ID, OpenLDAP, Google, AWS Cognito etc), Identity Providers (like Okta, Shibboleth, Ping, OneLogin, KeyCloak), Databases (like MySQL, Maria DB, PostgreSQL) and many more. You can configure your existing directory/user store or add users in miniOrange.

Setup miniOrange as IDP
Setup AD as User Directory
Setup External IDP

To add your users in miniOrange there are 2 ways:

1. Create User in miniOrange

2. Bulk Upload Users

1. Create User in miniOrange

Click on Users >> User List >> Add User.

Oracle Service Bus: Add user in miniOrange

Here, fill the user details without the password and then click on the Create User button.

After successful user creation a notification message "An end user is added successfully" will be displayed at the top of the dashboard.

Click on Onboarding Status tab. Check the email, with the registered e-mail id and select action Send Activation Mail with Password Reset Link from Select Action dropdown list and then click on Apply button.

Now, Open your email id. Open the mail you get from miniOrange and then click on the link to set your account password.
On the next screen, enter the password and confirm password and then click on the Single Sign-On (SSO) reset password button.

Now, you can log in into miniOrange account by entering your credentials.

2. Bulk Upload Users in miniOrange via Uploading CSV File.

Navigate to Users >> User List. Click on Add User button.

Oracle Service Bus: Add users via bulk upload

In Bulk User Registration Download sample csv format from our console and edit this csv file according to the instructions.

Oracle Service Bus: Download sample csv file

To bulk upload users, choose the file make sure it is in comma separated .csv file format then click on Upload.

After uploading the csv file successfully, you will see a success message with a link.
Click on that link you will see list of users to send activation mail. Select users to send activation mail and click on Send Activation Mail. An activation mail will be sent to the selected users.

Click on External Directories >> Add Directory in the left menu of the dashboard.

Oracle Service Bus: Configure User Store

Select Directory type as AD/LDAP.

Oracle Service Bus: Select AD/LDAP as user store

STORE LDAP CONFIGURATION IN MINIORANGE: Choose this option if you want to keep your configuration in miniOrange. If active directory is behind a firewall, you will need to open the firewall to allow incoming requests to your AD.
STORE LDAP CONFIGURATION ON PREMISE: Choose this option if you want to keep your configuration in your premise and only allow access to AD inside premises. You will have to download and install miniOrange gateway in your premise.

Oracle Service Bus: Select ad/ldap user store type

Enter LDAP Display Name and LDAP Identifier name.
Select Directory Type as Active Directory.
Enter the LDAP Server URL or IP Address against LDAP Server URL field.
Click on Test Connection button to verify if you have made a successful connection with your LDAP server.

Oracle Service Bus: Configure LDAP server URL Connection

In Active Directory, go to the properties of user containers/OU's and search for Distinguished Name attribute.

Oracle Service Bus: Configure user bind account domain name

Enter the valid Bind account Password.
Click on Test Bind Account Credentials button to verify your LDAP Bind credentials for LDAP connection.

Oracle Service Bus: Check bind account credentials

Search Base is the location in the directory where the search for a user begins. You will get this from the same place you got your Distinguished name.

Oracle Service Bus: Configure user search base

Select a suitable Search filter from the drop-down menu. If you use User in Single Group Filter or User in Multiple Group Filter, replace the <group-dn> in the search filter with the distinguished name of the group in which your users are present. To use custom Search Filter select "Write your Custom Filter" option and customize it accordingly.

Oracle Service Bus: Select user search filter

You can also configure following options while setting up AD. Enable Activate LDAP in order to authenticate users from AD/LDAP. Click on the Save button to add user store.

Oracle Service Bus: Activate LDAP options

Here's the list of the attributes and what it does when we enable it. You can enable/disable accordingly.

Attribute	Description
Activate LDAP	All user authentications will be done with LDAP credentials if you Activate it
Sync users in miniOrange	Users will be created in miniOrange after authentication with LDAP
Fallback Authentication	If LDAP credentials fail then user will be authenticated through miniOrange
Allow users to change password	This allows your users to change their password. It updates the new credentials in your LDAP server
Enable administrator login	On enabling this, your miniOrange Administrator login authenticates using your LDAP server
Show IdP to users	If you enable this option, this IdP will be visible to users
Send Configured Attributes	If you enable this option, then only the attributes configured below will be sent in attributes at the time of login

Click on Save. After this, it will show you the list of User stores. Click on Test Connection to check whether you have enter valid details. For that, it will ask for username and password.

Oracle Service Bus: Test AD/Ldap connection

On Successful connection with LDAP Server, a success message is shown.
Click on Test Attribute Mapping.

Oracle Service Bus LDAP successful connection

Enter a valid Username. Then, click on Test. Mapped Attributes corresponding to the user are fetched.

Oracle Service Bus: Fetch mapped attributes for user

After successful Attribute Mapping Configuration, go back to the ldap configuration and enable Activate LDAP in order to authenticate users from AD/LDAP.

Refer our guide to setup LDAPS on windows server.

User Import and Provisioning from AD

Go to Settings >> Product Settings in the Customer Admin Account.

MFA/Two-Factor Authentication(2FA) for miniOrange dashboard

Enable the "Enable User Auto Registration" option and click Save.

MFA/Two-Factor Authentication(2FA) for Enable User Auto Registration

(Optional) To send a welcome email to all the end users that will be imported, enable the "Enable sending Welcome Emails after user registration" option and click Save.

MFA/Two-Factor Authentication(2FA) for Enable sending Welcome Emails after user registration

From the Left-Side menu of the dashboard select Provisioning.

MFA/Two-Factor Authentication(2FA) for User Sync/Provisioning

In Setup Provisioning tab select Active Directory in the Select Application drop-down.
Toggle the Import Users tab, click on Save button.

MFA/Two-Factor Authentication(2FA) for User Sync Active Directory Configuration

On the same section, switch to Import Users section.
Select Active Directory from the dropdown and click on the Import Users tab, to import all the users from Active Directory to miniOrange.

MFA/Two-Factor Authentication(2FA) for User Sync Import Operation

You can view all the Users you have imports by selecting Users >> User List from Left Panel.

MFA/Two-Factor Authentication(2FA) for User List

All the imported users will be auto registered.
These groups will be helpful in adding multiple 2FA policies on the applications.

miniOrange integrates with various external user sources such as directories, identity providers, and etc.

Not able to find your IdP or Need help setting it up?

Contact us or email us at idpsupport@xecurify.com and we'll help you setting it up in no time.

Troubleshooting

How can I trace and export the SAML tracer logs?

Install SAML Tracer on your preferred browser:
For Firefox: Add SAML tracer Add-On from the Firefox marketplace.
For Chrome / Edge or Chromium-based browsers: Install the SAML tracer extension from Chrome Webstore.
Steps to Capture logs:
- Make sure the SAML Tracer window is opened before you start the SSO flow. (You can open it by clicking the SAML Tracer icon in your extensions list in the browser toolbar.)
- Run the SSO flow to reproduce the issue. You will see SAML Tracer getting populated with all the URLs.
- Hit Pause on SAML Tracer, once the issue is reproduced to avoid extra logs.
- You will have something similar to the below pic in the SAML tracer.
Steps to export logs:
- To export logs, click the export option on the top of the SAML Tracer. (Refer to screenshot below).
- You will be prompted with the Export SAML trace preferences window, select the None field, and then click on the Export option. (This option will allow keeping values in the original state which is required to further investigate the issue.)
- Click Export. This will download a JSON file on your system.
- Send the log file to the developer you are in touch with or at idpsupport@xecurify.com. Also, please attach an error screenshot. This would help us debug the issue.
- If you are still not able to get the logs, feel free to let us know.

Frequently Asked Questions (FAQs)

What is SAML SSO?

SAML Single Sign-On (SSO) is an authentication process in which a user is provided access to multiple applications and/or websites by using only a single set of login credentials (such as username and password). This prevents the need for the user to login separately into the different applications.

What is pricing of miniOrange SSO solution?

Click here to check the pricing of miniOrange SSO solution.
