Configure Discord as OAuth IDP for SSO

miniOrange Identity Broker service solution enables cross protocol authentication. You can configure Discord as an IDP for Single Sign-On (SSO) into your applications/websites. Here, Discord will act as an Identity Provider (IDP) and miniOrange will act as a broker.

We offer a pre-built solution for integrating with Discord, making it easier and quick to implement. Our team can also help you set up Discord as OIDC IDP to login into your applications.

Get Free Installation Help

miniOrange offers free help through a consultation call with our System Engineers to configure SSO for different apps using Azure AD as IDP in your environment with 30-day free trial.

For this, you need to just send us an email at idpsupport@xecurify.com to book a slot and we'll help you in no time.

Prerequisites

Please make sure your organisation branding is already set under Customization >> Login and Registration Branding in the left menu of the dashboard.

Follow the Step-by-Step Guide given below for Discord Single Sign-On (SSO)

1. Configure miniOrange as Service Provider (SP) in Discord

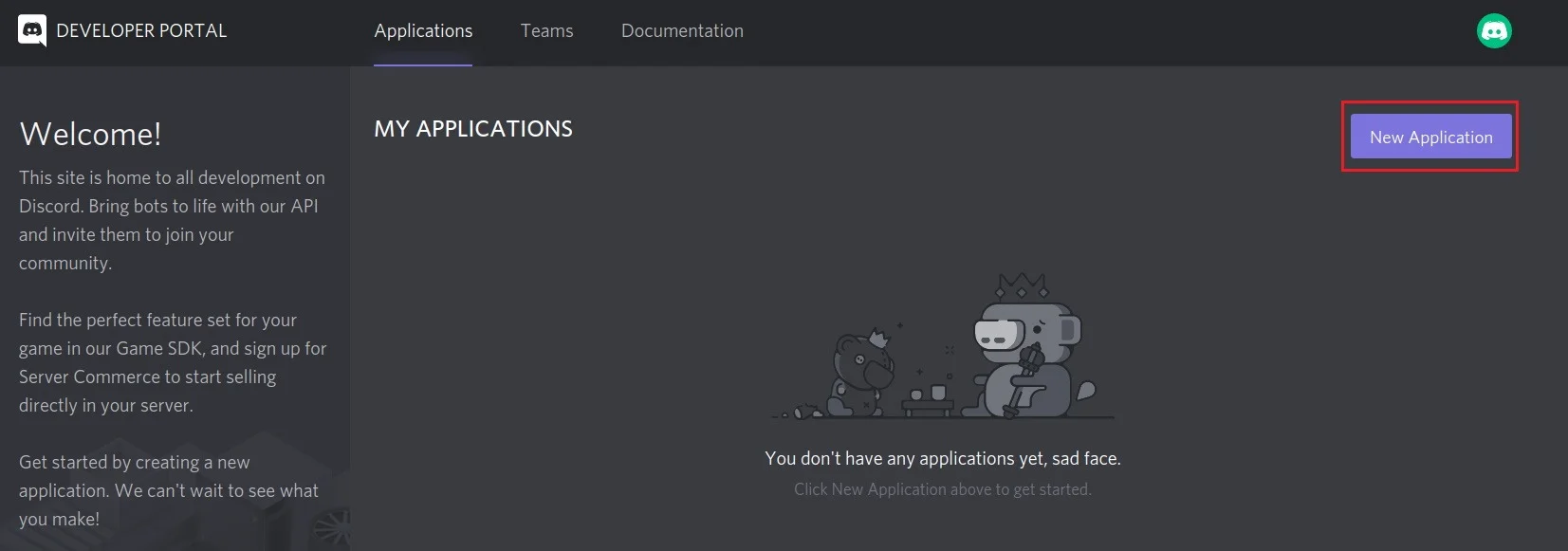

After clicking on the New Application button on Discord portal it will show you the popup for providing a name to the application. Click on the Create button after providing the application name.

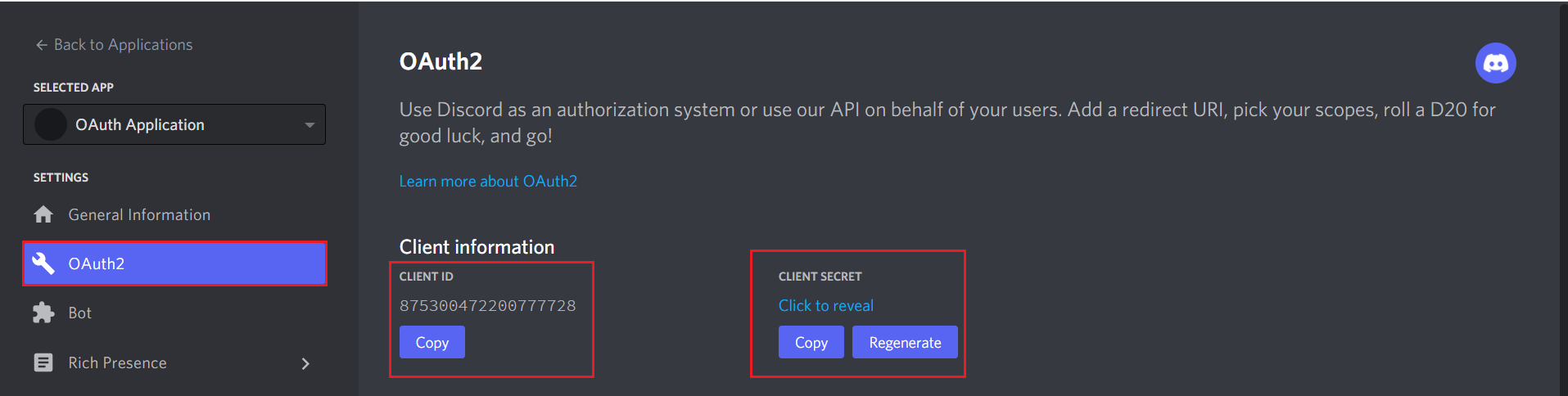

Navigate to the Oauth2 section. Copy Client ID & Client Secret from Discord console.

To get the Redirect URL:

Go to miniOrange Admin Console.
From the left navigation bar select Identity Provider.

discord sso: Select and Add Identity Provider

Copy the Callback URL as Redirect URL required for next step.

Back in the Discord dashboard, navigate to the OAuth2 section & Add Redirect button for adding the callback URL and click on the Save button.

2. Configure Discord as OAuth 2.0 Provider in miniOrange.

Go to miniOrange Admin Console.
From the left navigation bar select Identity Providers >> Add Identity Provider. Select OAuth 2.0.

Discord as IDP: Select and Add Identity Provider

Enter the following values.

IdP Name	Custom Provider
IdP Display Name	Choose appropriate Name
OAuth Authorize Endpoint	https://discordapp.com/api/oauth2/authorize
OAuth Access Token Endpoint	https://discordapp.com/api/oauth2/token
OAuth Get User Info Endpoint (optional)	https://discordapp.com/api/users/@me
Client ID	From step 1
Client secret	From step 1
Scope	identify email

3. Test Connection

Visit your Login Page URL.
Go to Identity Providers tab.
Click on Select >> Test Connection option against the Identity Provider (IDP) you configured.

On entering valid Discord credentials (credentials of user assigned to app created in Discord), you will see a pop-up window which is shown in the below screen.

Hence your configuration of Discord as IDP in miniOrange is successfully completed.

Note:

You can follow this guide, if you want to configure SAML/WS-FED, OAuth/OIDC, JWT, Radius etc

Configure Attribute Mapping

Go to Identity Providers >> View Identity Providers >> Your configured Discord as IdP.
Now click on Select and then Configure Attribute Mapping of your application.

Under Attribute Type - EXTERNAL for the external attributes that need to be transformed and sent to applications or service providers.
Click on the + Add Attribute button to add the attribute fields.

Discord Single Sign-On SSO Map External Attribute

Check attributes in test connection window from last step. Enter the attribute names (any name) that you want to send to your application under Attribute Name sent to SP.
Enter the value of attributes that are coming from IdP into the Attribute Name from IdP field on the Xecurify side.

Configure Multiple IDPs:

You can follow this guide, if you want to configure multiple IDPs (Identity Providers) and give users the option to select the IDP of their choice to authenticate with.
