PeopleSoft SSO is a feature that enables easy and seamless Single Sign-On into your PeopleSoft application instance authenticating against any of your existing identity source (Microsoft Entra ID, LDAP, or any IDP).

As we have officially been recognized as a Global Modernized Oracle Partner Network (OPN) Partner, you can rest assured that all of our integrations on the Oracle Stack fulfill the highest competencies set by Oracle for their trusted advisors like miniOrange.

"miniOrange PeopleSoft SSO connector enables Single Sign-On (SSO) between PeopleSoft and any IDPs without the need to purchase and install Oracle Access Manager (OAM) and Oracle Internet Directory (OID) license."

PeopleSoft SSO connector enables the Single Sign-On (SSO) integration between any Oracle application and IDPs (Identity Providers) like miniOrange, ADFS, Active Directory, Microsoft Entra ID, Google, Okta, Onelogin, Ping Idenity, Centrify and many more. It also provide SSO support for web applications which do not provide support for federated Single Sign-On (SSO) protocol such as SAML or OAuth 2.0. SSO connector gives you the flexibility of extending your existing SSO integration to Oracle PeopleSoft as well. This is possible due to its capability to act as a broker between multiple IdP's & your configured applications. This states that you can perform seamless SSO integration for PeopleSoft with your existing authentication platform.

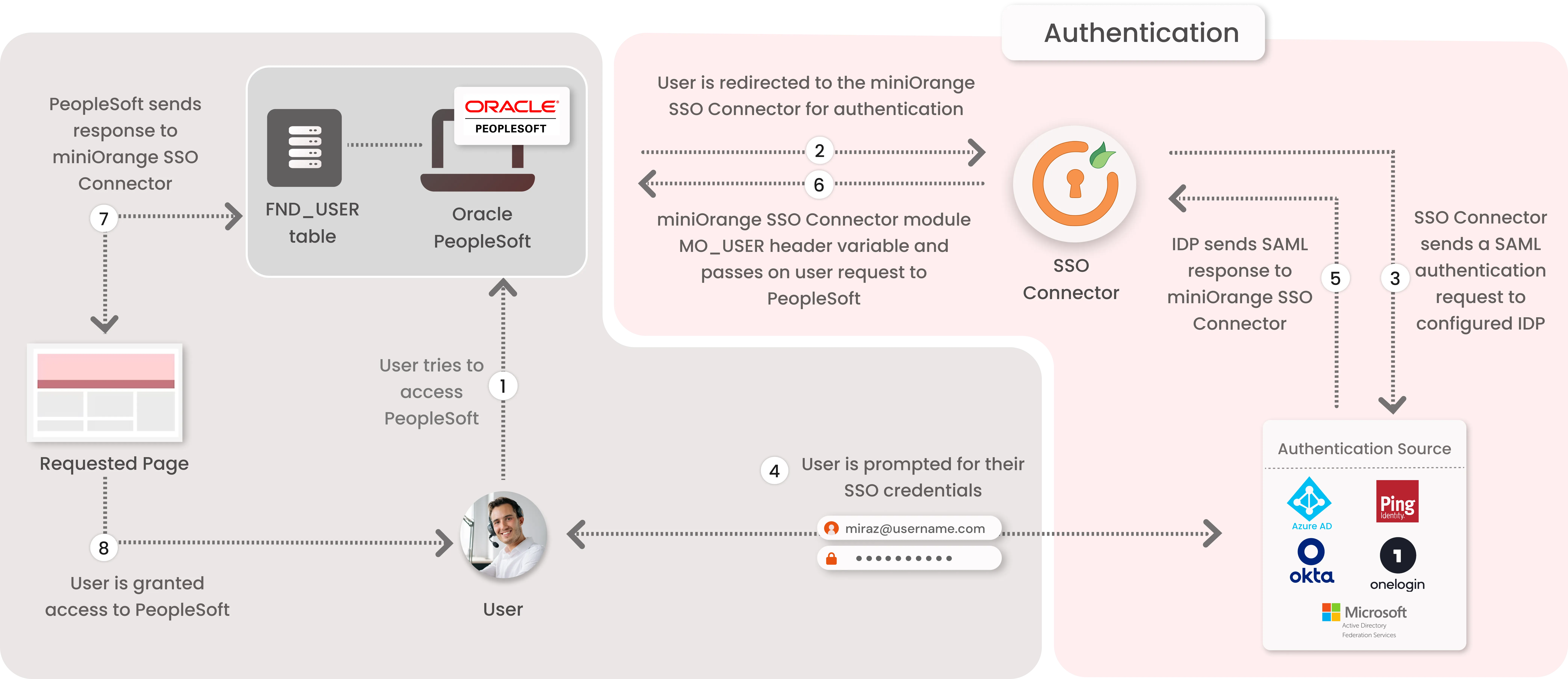

PeopleSoft SSO (Single Sign-On) Solution : Authentication Flow

Oracle PeopleSoft SSO (Single Sign-On) Solution : Authentication Flow

Prerequisites

1. Applications involved in the deployment

• PeopleSoft 9.2+
• This is the application into which users will login via SSO.
• Admin access of PeopleSoft EnterpriseOne Server Manager Management console will be required.
• miniOrange Identity Server(Only for On-Premise)
• On-Premise Identity Server which will redirect users to Azure Active Directory for authentication & set an authentication cookie.

2. Port Configuration

• miniOrange Proxy Server
• Ports 443/8443- HTTPS - should be accessible from end-users' machines (for reverse proxy URL).
• PeopleSoft EnterpriseOne Server
• HTTP/HTTPS ports used for accessing the PeopleSoft Applications should be accessible from the miniOrange Proxy Server.

Follow the Step-by-Step Guide given below for PeopleSoft SSO (Single Sign-On)

1. Configure PeopleSoft in miniOrange

• Cloud
• On-Premise

• Login into miniOrange Admin Console.
• Go to Apps and click on Add Applicaton button.



• In Choose Application Type click on Create App button in OAUTH/OIDC application type.



• Search for PeopleSoft in the list, if you don't find PeopleSoft in the list then, search for OAuth2/OpenID Connect and you can set up your application via OAuth2/OpenID Connect App.



• Enter the Client Name of your app.
• Copy the Redirect-URL from miniOrange SSO connector.
• Adjust time validity for the tokens.
• Then, click on Save.



• To get the Client id,Client secret, OAuth endpoints and scope, you need to edit the application which you have created in the previous steps.

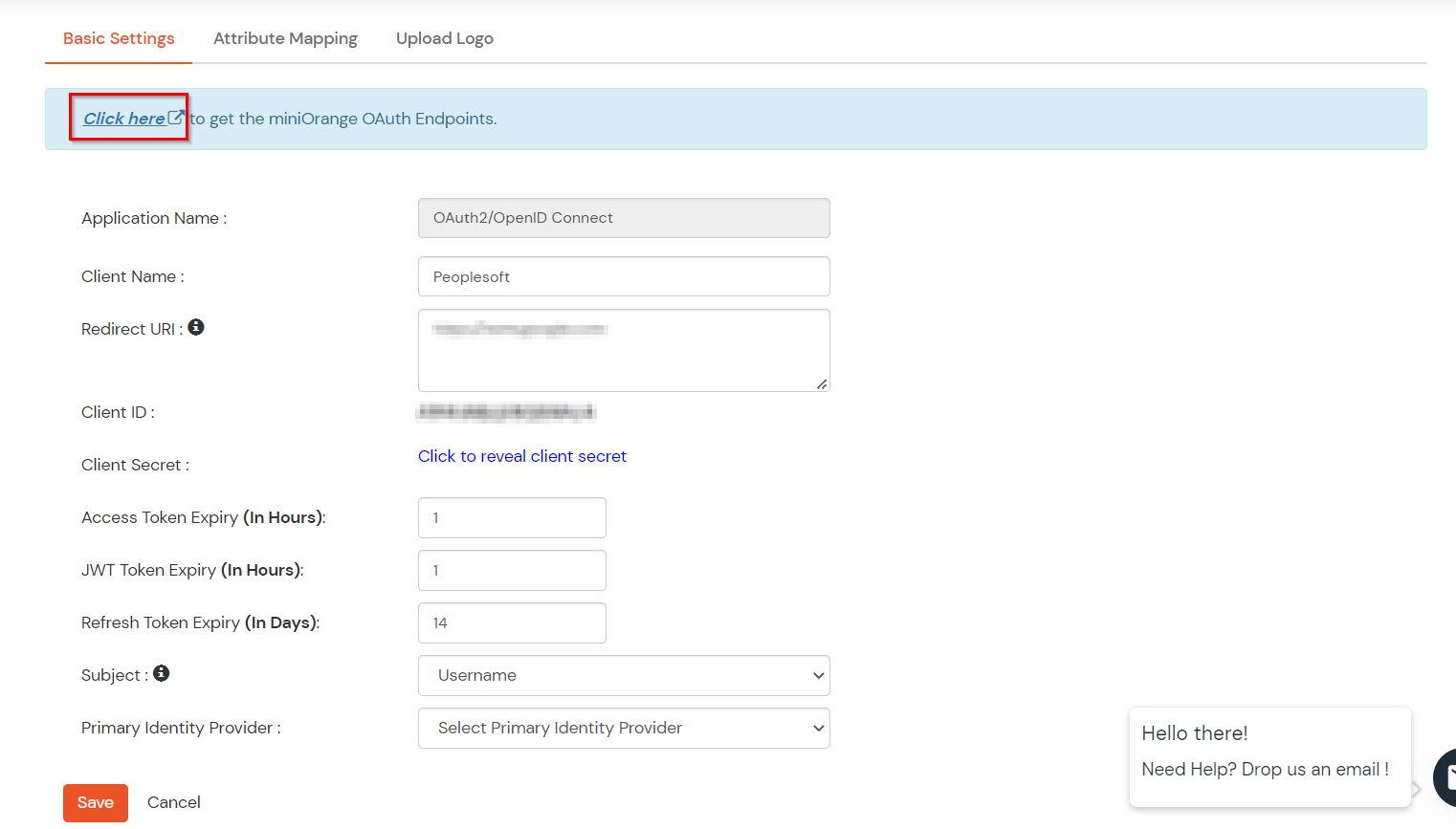

You can edit Application by using the following steps:

• Go to Apps.
• Search for your app and Click on the edit in Action menu against your app.



• Click on Click here to get the miniOrange endpoints.



• Note down all the parameters (Client id,Client secret,OAuth endpoints and scopes). You will need this info while configuring PeopleSoft with miniOrange.

OAuth endpoints:

Authorization Endpoint:	https://login.xecurify.com/moas/idp/openidsso (Note: Use this endpoint only if you want to use miniorange as oauth identity server.) https://login.xecurify.com/moas/broker/login/oauth/260174 (Note: Use this enpoint only if you are configuring any Identity Provider in Identity Providers Menu and not using miniorange as IDP.)
Token Endpoint:	https://login.xecurify.com/moas/rest/oauth/token
User Info Endpoint:	https://login.xecurify.com/moas/rest/oauth/getuserinfo
Introspection Endpoint:	https://login.xecurify.com/moas/rest/oauth/introspect
Revoke Endpoint:	https://login.xecurify.com/moas/rest/oauth/revoke
OpenID Single Logout Endpoint:	https://login.xecurify.com/moas/idp/oidc/logout?post_logout_redirect_uri=<YOUR-APP-LOGOUT-URL>




OAuth Scopes:

email:	View email address of the user
profile:	View profile attributes of the user account
openid:	Retrieve JWT token for OpenID Connect

• Once the prerequisites are in place, the miniOrange Identity Server will be installed on the miniOrange Application Server.
• The miniOrange Identity Server consists of 2 components - a reverse proxy, and the Identity Server.
• You can find the steps for deploying the miniOrange Identity Server here.

2. PeopleSoft SSO Configuration

• Logon to PeopleSoft Console using Admin credentials.



• Navigate to PeopleTools >> Security >> User Profiles >> User Profiles to create a new user profile.
• Enter the following details:

User ID	SSO
Symbolic ID	Blank
ID Type	None
Role	PeopleSoft User






• Edit the current Web Profile to configure SSO user for the Public Access
• Go to PeopleTools >> Web Profile >> Web Profile Configuration >> Search >> PROD >> Security.
• Enter the User ID and password which was created earlier and click on Save.



• Edit Signon PeopleCode to enable miniOrange Authentication.
• Go to PeopleTools >> Security >> Security Objects >> Signon PeopleCode.
• Create a line with SSO_Authentication



• In Application Designer, Click Open and Select ‘Record’, and Open FUNCLIB_LDAP
• Go to Open >> Select LDAPAUTH, then Right Click and now click on the View PeopleCode.
• Update PeopleCode of LDAPAUTH for getWWWAuthConfig() function to update defaultUserID to SSO

3. Test SSO Configuration

• Non SSO login flow:



• SSO login flow:

4. Configure Your User Directory (Optional)

miniOrange provides user authentication from various external sources, which can be Directories (like ADFS, Microsoft Active Directory, Microsoft Entra ID, OpenLDAP, Google, AWS Cognito etc), Identity Providers (like Okta, Shibboleth, Ping, OneLogin, KeyCloak), Databases (like MySQL, Maria DB, PostgreSQL) and many more. You can configure your existing directory/user store or add users in miniOrange.

• Setup miniOrange as IDP
• Setup AD as User Directory
• Setup External IDP

• To add your users in miniOrange there are 2 ways:

1. Create User in miniOrange

2. Bulk Upload Users

1. Create User in miniOrange

• Click on Users >> Add User.



• Here, fill the user details without the password and then click on the Create User button.



• After successful user creation a notification message "An end user is added successfully" will be displayed at the top of the dashboard.



• Click on Onboarding Status tab. Check the email, with the registered e-mail id and select action Send Activation Mail with Password Reset Link from Select Action dropdown list and then click on Apply button.



• Now, Open your email id. Open the mail you get from miniOrange and then click on the link to set your account password.
• On the next screen, enter the password and confirm password and then click on the Single Sign-On (SSO) reset password button.



• Now, you can log in into miniOrange account by entering your credentials.

2. Bulk Upload Users in miniOrange via Uploading CSV File.

• Navigate to Users >> User List. Click on Add User button.



• In Bulk User Registration Download sample csv format from our console and edit this csv file according to the instructions.



• To bulk upload users, choose the file make sure it is in comma separated .csv file format then click on Upload.



• After uploading the csv file successfully, you will see a success message with a link.
• Click on that link you will see list of users to send activation mail. Select users to send activation mail and click on Send Activation Mail. An activation mail will be sent to the selected users.

• Click on User Stores >> Add User Store in the left menu of the dashboard.



• Select User Store type as AD/LDAP.



1. STORE LDAP CONFIGURATION IN MINIORANGE: Choose this option if you want to keep your configuration in miniOrange. If active directory is behind a firewall, you will need to open the firewall to allow incoming requests to your AD.
2. STORE LDAP CONFIGURATION ON PREMISE: Choose this option if you want to keep your configuration in your premise and only allow access to AD inside premises. You will have to download and install miniOrange gateway in your premise.




• Enter LDAP Display Name and LDAP Identifier name.
• Select Directory Type as Active Directory.
• Enter the LDAP Server URL or IP Address against LDAP Server URL field.
• Click on Test Connection button to verify if you have made a successful connection with your LDAP server.



• In Active Directory, go to the properties of user containers/OU's and search for Distinguished Name attribute.



• Enter the valid Bind account Password.
• Click on Test Bind Account Credentials button to verify your LDAP Bind credentials for LDAP connection.



• Search Base is the location in the directory where the search for a user begins. You will get this from the same place you got your Distinguished name.



• Select a suitable Search filter from the drop-down menu. To use custom Search Filter select "Custom Search Filter" option and customize it accordingly.



• You can also configure following options while setting up AD. Enable Activate LDAP in order to authenticate users from AD/LDAP. Click on the Save button to add user store.




Here's the list of the attributes and what it does when we enable it. You can enable/disable accordingly.

Attribute	Description
Activate LDAP	All user authentications will be done with LDAP credentials if you Activate it
Sync users in miniOrange	Users will be created in miniOrange after authentication with LDAP
Backup Authentication	If LDAP credentials fail then user will be authenticated through miniOrange
Allow users to change password	This allows your users to change their password. It updates the new credentials in your LDAP server
Enable administrator login	On enabling this, your miniOrange Administrator login authenticates using your LDAP server
Show IdP to users	If you enable this option, this IdP will be visible to users
Send Configured Attributes	If you enable this option, then only the attributes configured below will be sent in attributes at the time of login



• Click on Save. After this, it will show you the list of User stores. Click on Test Configuration to check whether you have enter valid details. For that, it will ask for username and password.



• On Successful connection with LDAP Server, a success message is shown.
• Click on Test Attribute Mapping.



• Enter a valid Username. Then, click on Test. Mapped Attributes corresponding to the user are fetched.



• After successful Attribute Mapping Configuration, go back to the ldap configuration and enable Activate LDAP in order to authenticate users from AD/LDAP.

Refer our guide to setup LDAPS on windows server.

User Import and Provisioning from AD

• Go to Settings in the Customer Admin Account.



• Enable the "Enable User Auto Registration" option and click Save.



• (Optional) To send a welcome email to all the end users that will be imported, enable the "Enable sending Welcome Emails after user registration" option and click Save.



• From the Left-Side menu of the dashboard select Provisioning.



• In Setup Provisioning tab select Active Directory in the Select Application drop-down.
• Toggle the Import Users tab, click on Save button.



• On the same section, switch to Import Users section.
• Select Active Directory from the dropdown and click on the Import Users tab, to import all the users from Active Directory to miniOrange.



• You can view all the Users you have imports by selecting Users >> User List from Left Panel.



• All the imported users will be auto registered.
• These groups will be helpful in adding multiple 2FA policies on the applications.

miniOrange integrates with various external user sources such as directories, identity providers, and etc.

• Okta
• ADFS
• Ping
• Many more

Not able to find your IdP or Need help setting it up?

Contact us or email us at idpsupport@xecurify.com and we'll help you setting it up in no time.

5. Adaptive Authentication with PeopleSoft

A. Restricting access to PeopleSoft with IP Blocking

You can use adaptive authentication with PeopleSoft Single Sign-On (SSO) to improve the security and functionality of Single Sign-On. You can allow a IP Address in certain range for SSO or you can deny it based your requirements and you can also challenge the user to verify his authenticity. Adaptive authentication manages the user authentication bases on different factors such as Device ID, Location, Time of Access, IP Address and many more.

You can configure Adaptive Authentication with IP Blocking in following way:

• Login to Self Service Console >> Adaptive Authentication.
• Add a Policy Name for your Adaptive Authentication Policy.



• Select your Action for behavior Change and Challenge Type for user from the Action for behavior Change Section.





Action for behavior Change Options :




Attribute	Description
Allow	Allow user to authenticate and use services if Adaptive authentication condition is true.
Challenge	Challenge users with one of the three methods mentioned below for verifying user authenticity.
Deny	Deny user authentications and access to services if Adaptive authentication condition is true.




Challenge Type Options :




Attribute	Description
User second Factor	The User needs to authenticate using the second factor he has opted or assigned for such as OTP over SMS PUSH Notification OTP over Email And 12 more methods.
KBA (Knowledge-based authentication)	The System will ask user for 2 of 3 questions he has configured in his Self Service Console. Only after right answer to both questions user is allowed to proceed further.
OTP over Alternate Email	User will receive a OTP on the alternate email he has configured threw Self Service Console. Once user provides the correct OTP he is allowed to proceed further.



• Now Enable Enable IP Restriction option from the IP RESTRICTION CONFIGURATION section to configure custom IP range.



• Select the Action you want to perform if the IP address is out of the range. i.e. Allow, Challenge & Deny.
• Specify the IP Address range for which you want above setting to reflect. You can add more than one IP Address ranges by clicking on following button +.
• Scroll to the end and click on save.

B. Adaptive Authentication with Limiting number of devices.

Using Adaptive Authentication you can also restrict the number of devices the end user can access the Services on. You can allow end users to access services on a fixed no. of devices. The end users will be able to access services provided by us on this fixed no. of devices.

You can configure Adaptive Authentication with Device Restriction in following way


• Login to Self Service Console >> Adaptive Authentication.
• Add a Policy Name for your Adaptive Authentication Policy.
• Select your Action for behavior Change and Challenge Type for user from the Action for behavior Change Section.




• Scroll down to Device Configuration section and enable Allow User to Register Device option to allow users to register their devices.
• Enter the Number of Devices which are allowed to register in field next to Number of Device Registrations Allowed
• Choose Action if number of devices exceeded (This will override your setting for Action for behavior Change.)
1. Challenge: The user needs to verify himself using any of the three methods mentioned in table in step 5.1
2. Deny : Deny users access to the system
• Enable option Send email alerts to Users if number of Device registrations exceeded allowed count if you want to alert the user about no of devices exceeding the limit. Save the configuration.

C. Add Adaptive Authentication policy to PeopleSoft.

• Login to Self Service Console >> Policies.
• Click on Edit option for predefined app policy.



• Set your application name in the Application and select password as Login Method.
• Enable Adaptive Authentication on Policy page and select the required restriction method as an option.
• From Select Login Policy dropdown select the policy we created in last step and click on save.

D.Notification and Alert Message.

This section handles the notifications and alerts related to Adaptive Authentication.It provides the following options :

• Get email alerts if users login from unknown devices or locations : Admin need to enable this option to enable receiving alerts for different alert options.




Option	Description
Challenge Completed and Device Registered	Enabling this option allows you to send an email alert when an end-user completes a challenge and registers a device.
Challenge Completed but Device Not Registered	Enabling this option allows you to send an email alert when an end-user completes a challenge but do not registers the device.
Challenge Failed	Enabling this option allows you to send an email alert when an end-user fails to complete the challenge.






• Next subsection is Send email alerts which allows us to enable or disable alerts for admin and end-users. To enable alerts for admins, you can enable the “Administrators” switch button.




• In case you want multiple admins accounts to receive alerts then you can enable the option for admin and then enter the admin emails separated by a ‘,’ in the input field next to Administrators email to receive alerts label. To enable alerts for the end-users, you can enable the “End Users” switch button.
• In case you want to customize the deny message that end user receive in case his authentication denied due to adaptive policy, you can do this by entering the message inside “Deny message for Adaptive Authentication” text box.


How to add a trusted Device

1. When End-user log in to the self service console after the policy for device restriction is on, he is provided the option to add the current device as a trusted device.

Frequently Asked Questions (FAQs)

External References

• Peoplesoft Multi-Factor Authentication (MFA) Solution
• SSO Integration for other Oracle Applications
• Enable SSO & MFA for Oracle E-Business Suite (EBS)
• Oracle PeopleSoft Configuration

Note: Oracle and Java are registered trademarks of Oracle and/or its affiliates. miniOrange is a separate entity.
